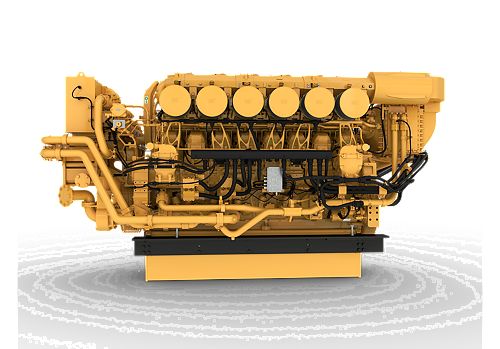

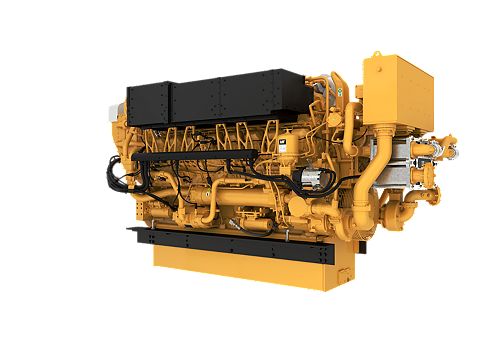

3516E High Output
- Bore
- 6.69 in / 170 mm
- Stroke
- 8.46 in / 215 mm
- Displacement
- 4766 in³ / 78.1 l
Building on the durability and reliability of the 3500 engine platform, Caterpillar Marine is pleased to offer an uprated version of the Cat 3516E Marine Propulsion Engine. The high-performance engine delivers 19% more rated power, lower ambient heat rejection, and improved acceleration time compared to previous 3516E. With a focus on serviceability and digitalization, this product provides easy connectivity and installation. It is designed for compact engine rooms and is an ideal solution for Tug, Government & Defense, and Yachting vessels.
| Ratings | |
|---|---|
| Power Range | 3151 - 4023 bhp (2350 - 3000 bkW) |
| Engine | |
|---|---|
| Speed Range | 1800 rpm |
| Emissions | IMO II/ IMO III |
| Aspiration | Sequential Turbocharged / Aftercooled |
| Bore | 6.69 in / 170 mm |
| Stroke | 8.46 in / 215 mm |
| Displacement | 4766 in³ / 78.1 l |
| Rotation from Flywheel End | Counterclockwise or Clockwise |
| Configuration | V 16, 4-Stroke Cycle Diesel |
| Dimensions & Weights | |
|---|---|
| Length | 163 in / 4133 mm |
| Height | 89 in / 2253 mm |
| Width | 71 in / 1800 mm |
| Dry Weight | 25353 lb / 11500 kg |
