C2.8

Maximum Power: 74 hp / 55 kW
Maximum Torque: 221 lb-ft @ 1600 rpm / 300 Nm @ 1600 rpm
Minimum Power: 74 hp / 55 kW

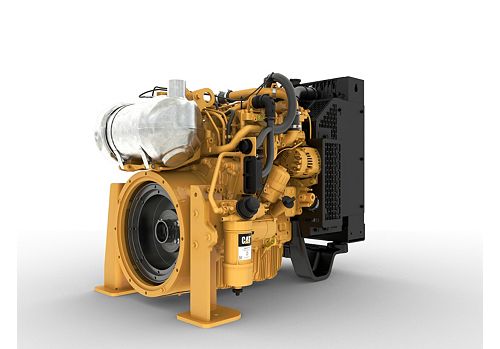

The C2.8 and C3.6 IPU engines are common rail direct injection engines with a turbocharged or turbocharged aftercooled air system meeting EU Stage V, U.S. EPA Tier 4 Final and Japan 2014 (Tier 4 Final) emission standards. For ease of installation, the IPU provides full aftertreatment mounting, an integrated cooling system, a full wiring harness and mounting for the ECM and fuel filter.

Loan Calculator Credit Application

Build & Quote

C2.8 IPU Spec Sheet

Specifications
Equipment
Related Products

Power Rating
Maximum Power	74 hp / 55 kW
Maximum Torque	221 lb-ft @ 1600 rpm / 300 Nm @ 1600 rpm
Rated Speed	2200-2400 rpm
Minimum Power	74 hp / 55 kW

Emission Standards
Emissions	EU Stage V/U.S. EPA Tier 4 Final/ Japan 2014 (Tier 4 Final)

General
Number of Cylinders	4 inline
Cycle	4 stroke
Bore	3.54 in / 90 mm
Stroke	4.33 in / 110 mm
Displacement	170.9 in³ / 2.8 l
Compression Ratio	17.0:1
Aspiration	Turbocharged
Combustion System	Direct injection
Rotation from Flywheel End	Anti-clockwise
Aftertreatment	DOC+DPF
Cooling System	Liquid

Engine Dimensions*
Length	46.9 in / 1191 mm
Width	31.9 in / 809 mm
Height	38 in / 966 mm
Dry Weight	1126 lb / 511 kg

Disclaimer
Note 1	*Final dimensions dependent on selected options

Standard Equipment

Aftertreatment Equipment
- Aftertreatment mounted on engine as standard
Air System
- Standard and heavy duty air cleaners
Cooling System
- 50:50 water glycol mix
- Detailed guidance on cooling system design and validation available to ensure machine reliability
- Engine mounted radiator with top tank temperature of 108°C (226°F)
- Pusher or puller fan options
- Radiator erosion screen is available
Electrical and Electronics
- 12V system
- Data interface via CANbus J1939
- Instrument control panel available
- Full electronic control
- Glow plugs for best cold starting with minimum battery impact
- High power alternator and starter motor options
- Sensors and robust wiring harness included
Flywheel and Flywheel Housing
- SAE3 flywheel housing and flywheel with pilot bore
- Wide choice of interfaces for common transmissions and hydraulic pumps
Fuel System
- Electronic high pressure common rail
- Fuel filter - IOPU mounted
- Standard and heavy duty fuel filtration
- Water sensor included - early warning for operator
General
- Cold-start capable with standard equipment to -25°C
- Supplied painted or lacquered
Oil System
- Oil filters - mounting options available on either side of the engine, plus remote
- Dipsticks - choice of position and length
- High incline sump. 35° continuous in all directions. Suitable for machines that are used on steep slopes
Power Take-Off (PTO)
- SAE-A and SAE-B interfaces available
