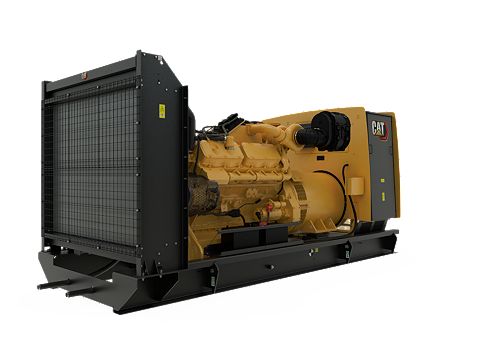

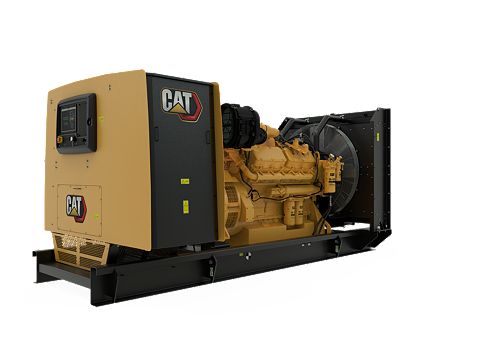

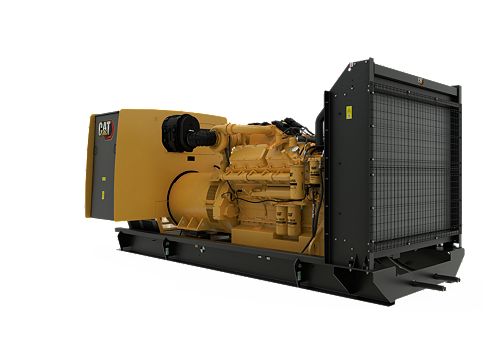

3412C (60 Hz)

Bore: 5.4 in / 137.2 mm
Stroke: 6 in / 152.4 mm
Displacement: 1648.86 in³ / 27.02 l

Caterpillar is leading the power generation marketplace with Power Solutions engineered to deliver unmatched flexibility, expandability, reliability, and cost-effectiveness.

Loan Calculator Credit Application

Build & Quote

Electric Power Ratings Guide 3412, 60 Hz, 635-800 ekW, Low Fuel Consumption Spec Sheet 3412, 60 Hz, 635-800 ekW, Low Fuel Consumption Spec Sheet

Specifications
Equipment
Related Products

Generator Set Specifications
Maximum Rating	800 ekW
Minimum Rating	635 ekW
Emissions/Fuel Strategy	Low Fuel Consumption
Voltage	220 to 480 Volts
Frequency	60 Hz
Speed	1800 rpm
Duty Cycle	Standby, Prime

Engine Specifications
Engine Model	3412C TA, V-12, 4-Stroke Water-Cooled Diesel
Bore	5.4 in / 137.2 mm
Stroke	6 in / 152.4 mm
Displacement	1648.86 in³ / 27.02 l
Compression Ratio	13:00:01
Aspiration	TA
Fuel System	Pump and Lines
Governor Type	ADEM™ A5

Generator Set Dimensions
Length - Maximum	162.4 in / 4125 mm
Width - Maximum	78.3 in / 1989 mm
Height - Maximum	75 in / 1906 mm
Dry Weight - Genset (minimum)	5761 lb / 12700 kg
Dry Weight - Genset (maximum)	13275 lb / 6021 kg

Standard Equipment

Air Inlet System
- Air cleaner, single element canister type
- Single element canister type
Control Panel
- High coolant temperature
- Customer data link (Modbus RTU)
- Low coolant temperature
- Low coolant level
- Communications:
- Run/auto/ stop/control
- Engine cycle crank
- Generator temperature monitoring module
- Power factor (per phase & average)
- Remote CAN annunciator
- Serial annunciator module data link
- DC volts
- Frequency (Hz)
- Operating hours.
- Emergency stop pushbutton
- Digital I/O module
- Local annunciator
- Low oil pressure
- Oil pressure (psi, kPa or bar)
- Emergency stop
- Warning shutdowns:
- Volts (L-L & L-N)
- Remote Serial annunciator
- Speed adjust
- Amps (per phase & average)
- Voltage adjust
- EMCP 4.2B
- Overspeed
- coolant temperature
- Digital Indicator for:
- RPM
- Accessory module data link
- Failure to start (overcrank)
- Controls:
- Compatible with the following optional modules:
Cooling System
- Caterpillar extended life coolant
- Radiator with guard (sized for 50 degrees C)
- Fan and belt guards
- Coolant drain line with valve
Exhaust System
- Stainless steel exhaust flex with ANSI style outlet flange
Fuel System
- Primary and Secondary fuel filters
- Fuel priming pump
- Water separator
Generator and Attachments
- 3 Phase sensing
- SR4B self excited
- Class F temperature rise
- VR6B voltage regulator
- Busbar termination
- 12 Leads
- Class H insulation
- 2:1 Volts/Hz
- Reactive droop
Governing System
- Cat electronic governor
Lube System
- Oil drain line with valve
- Lubricating oil
- Oil filter
Mounting System
- Base, formed steel with linear vibration isolators between base and engine-generator
Starting / Charging System
- Battery with rack, cables
- 45 Amp Charging alternator
- Fuel shutoff solenoid
- 24 Volt starting motor
General
- Paint - Caterpillar yellow except rails and radiators gloss black

Optional Equipment

Air Inlet System
- Air cleaner - Dual element
- Air cleaner - Heavy element
- Air cleaner - single element
Certificates
- EU Certification
Circuit breakers
- 4 Pole Circuit breakerswith shunt trip
- 3 Pole Circuit breakers with shunt trip
- Power terminal strip
Control Panel
- EMCP 4.3, EMCP 4.4
- Temperature monitoring package
- Vandal proof panel door
- Generator running VFC
- Earth leakage Ground fault relay
- Common alarm/shutdown relay
Cooling System
- Jacket water heater
- Radiator duct flange
- Radiator removal
Exhaust System
- Muffler 10 dBA attenuation
- Manifold and turbocharger guards
- Muffler 35 dBA attenuation
- Elbow mounting kit
- Through wall installation kit
Fuel System
- Manual fuel transfer pump
- Automatic fuel transfer system
Generator and Attachments
- Internal excitation (IE)
- Anti-condensation heater
- Permanent magnet excitation (PMG)
- Oversize and premium generators
Governing System
- Electronic load share
Lube System
- Manual sump pump
Mounting System
- Fuel tank base (1200 Ltr)
Special Tests / Reports
- PGS Test report @ 1.0 power factor
- PGS Test report @ 0.8 power factor
- Factory witness test
Starting / Charging system
- Oversize battery set
- Battery chargers
- Heavy duty starting system
- Battery disconnect switch
- Battery removal
Enclosures
- DC lighting package
- Weather protective enclosure (WP)
- Sound attenuated enclosure (SA)

Switchgear and Paralleling Controls

Generator switchgear controls, protects and isolates electrical equipment. Our paralleling switchgear is available in low-voltage, medium-voltage, and high-voltage configurations to automatically start, synchronize and parallel generators with the load.

Model	Configuration	Operating Temperature	Standard Widths
Cat Switchgear	IP4X	35 °C / 40 °C @ 1 hr, option for 0…50 °C (32…122 °F)	600 mm for ABB Emax2 E2 1600 - 2500A. 750 mm for ABB Emax2 E4 3200 - 4000A. 1200 mm for ABB Emax2 E6 4000 - 6300A.
