Cat Switchgear

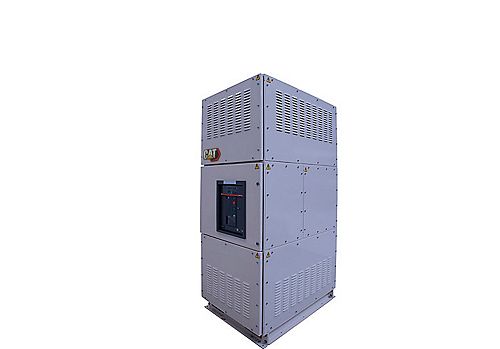

Cat Paralleling Switchgear is the perfect complement for the control and distribution of your emergency power. Modular and Customizable, our gen switchgear can be designed with protection and control architecture.
| Enclosure Rating | |
|---|---|
| Configuration | IP4X |
| Operating Temperature | |
|---|---|
| Operating Temperature | 35 °C / 40 °C @ 1 hr, option for 0…50 °C (32…122 °F) |
| Dimensions | |
|---|---|
| Standard Widths | 600 mm for ABB Emax2 E2 1600 - 2500A. 750 mm for ABB Emax2 E4 3200 - 4000A. 1200 mm for ABB Emax2 E6 4000 - 6300A. |
| Standard Heights | Heights include 100mm plinth with fork lift pockets, 1900 mm up to 3200A, 2200 mm for 400,2200 mm for PLC and control cabinets. Option for single point lifting on 4 corners with M10 swivel eyes. Standard sizes for shipping |
| Standard Depths | 300, 450 & 750mm for controls and PLC cabinets. 900mm for fixed breakers. 1050mm for withdrawable breakers |
| Technical Summary | |
|---|---|
| Technical Summary | Modular system enables any configuration Distribution Boards, Motor Control Centers & PLC Control cabinets. Accommodates fixed or withdrawable breakers. |
| Application | |
|---|---|
| Application | LV 380…480 VAC, 50 Hz, 3-Phase. |
| Modes of Operation | |
|---|---|
| Modes of Operation | Switchgear integration options for multi generator and utility synchronising, load sharing, Peak Lopping/Shaving, AMF, Changeover, Load bank connection, Protection relay etc. |
