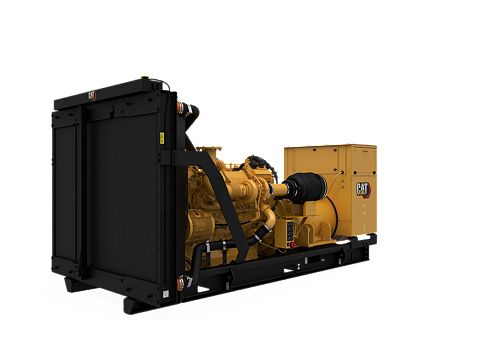

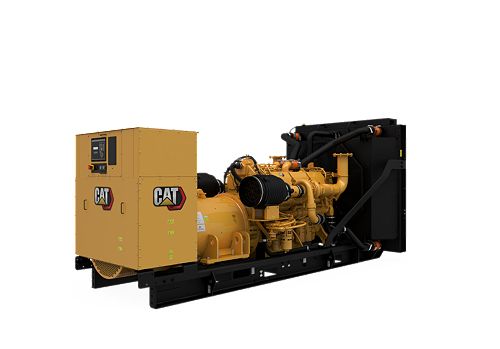

C32 (60 Hz)

Bore: 5.71 in / 145 mm
Stroke: 6.38 in / 162 mm
Displacement: 1958.86 in³ / 32.1 l

Producing reliable power from 830 to 1250 ekW at 60 Hz, our C32 diesel generator sets are made to meet your mission critical, continuous, standby and prime applications. We've designed each to ISO 8528-5 transient response requirements and to accept 100% rated load in one step. Generator sets range from low fuel consumption systems to EPA Stationary Emergency (Tier 2) certification.

Loan Calculator Credit Application

Build & Quote

Electric Power Ratings Guide C32, 60 Hz, 1000 ekW Standby/MC, 910 ekW Prime, 830 ekW Cont., Low Fuel Consumption Spec Sheet C32, 60 Hz, 1000 ekW Standby/MC, 910 ekW Prime, 830 ekW Cont., U.S. EPA Certified for Emergency Stationary Applications (Tier 2) Spec Sheet C32, 60 Hz, 1250 ekW Standby/MC, 1136 ekW Prime, Low Fuel Consumption Spec Sheet C32, 60 Hz, 1250 ekW Standby/MC, 1136 ekW Prime, U.S. EPA Certified for Emergency Stationary Applications (Tier 2) Spec Sheet C27-C32 GC NA Enclosure data sheet

Specifications
Equipment
Related Products

Generator Set Specifications
Maximum Rating	1250 ekW
Minimum Rating	830 ekW
Emissions/Fuel Strategy	Low Fuel, Tier 2 Nonroad Stds
Voltage	220 to 4160 Volts
Frequency	60 Hz
Speed	1800 rpm
Duty Cycle	Standby, Mission Critical, Prime, Continuous

Engine Specifications
Engine Model	C32 TA, V-12, 4-Stroke Water-Cooled Diesel
Bore	5.71 in / 145 mm
Stroke	6.38 in / 162 mm
Displacement	1958.86 in³ / 32.1 l
Compression Ratio	15.0:1
Aspiration	TA
Fuel System	MEUI
Governor Type	Adem™A4

Generator Set Dimensions
Length - Minimum	164 in / 4165 mm
Length - Maximum	172.7 in / 4385 mm
Width - Minimum	66.3 in / 1684 mm
Width - Maximum	87.7 in / 2228 mm
Height - Minimum	85.1 in / 2162 mm
Height - Maximum	86.4 in / 2194 mm
Dry Weight - Genset (minimum)	14700 lb / 6668 kg
Dry Weight - Genset (maximum)	16755 lb / 7600 kg

Standard Equipment

Air Inlet System
- Single element canister type with service indicator
Control Panel
- Warning shutdowns
- EMCP 4.2B
- Digital Indicators
- Communications
- Control features
- Programmable protective relaying functions
Cooling System
- Caterpillar extended life coolant
- ATAAC
- Coolant drain line with valve
- Low coolant level sensor
- Fan and belt guards
- Radiator fan and fan drive
Exhaust System
- 203 mm (8 in) ID round flanged outlet
- Exhaust manifold - dry
Fuel System
- Fuel cooler
- Fuel priming pump
- Secondary fuel filters
- Primary fuel filter with water separator
General
- RH service
- Caterpillar yellow with high gloss black rails & radiator
- SAE standard rotation
- Flywheel and flywheel housing-SAE
Generators and Attachments
- Class H temperature rise at 40C ambient
- 3 Phase brushless
- Permanent magnet excitation (PMG)
- Winding temperature detectors
- Integrated voltage regulator (IVR)
- Reactive droop
- IEC standard hole pattern
- NEMA Class H insulation
- Busbar connections, top center mounted, top cable entry
- Salient pole
- 6 Lead
- Internal excitation (IE)
Governing System
- ADEM(tm) A4
Lube System
- Gear type lube oil pump
- Oil drain lines and valve
- Fumes disposal
- Lubricating oil
- Integral lube Oil cooler
- Oil filter, filler and dipstick
Mounting System
- Rubber anti-vibration mounts
- Rails - Engine/generator/radiator mounting
Power Termination
- Busbar
Starting and Charging
- 45 Amp Charging alternator
- 24 Volt electric starting motor
- Battery disconnect switch
- Battery, rack and cables

Optional Equipment

Air Inlet System
- Standard air cleaners
- Heavy duty air cleaner
- Dual element air cleaner
Circuit breakers
- Shrouds
- 1600, 2000, 2500 and 3200 Amp, 3 Pole, IEC-Rated Circuit breakers
- Center posts busbars
- Enclosures - Control packaging
- 400, 800, 1200, 1600, 2000, 2500 and 3000 Amp, 3 Pole, UL-100% Rated Circuit breakers
- Circuit breaker wiring groups
- Power connection covers
- Cable supports
- 800, 1600, 2000, 2500 and 3200 Amp, 4 Pole, IEC rated Circuit breakers
Control Panels
- EMCP 4.3, EMCP 4.4
Cooling System
- High ambient radiator
- Extended life coolant
- Standard radiator
- Radiator duct flange
- Certified radiator
Enclosures
- Premium sound attenuated enclosure
- Cold weather bundle
- Color options
- DC lighting package
- Sound attenuated enclosure
- AC Panel, outlets and lights
- Panel bracket
- Enclosure fuel tank options
- Enclosure louvers - fixed and motorized
Exhaust System
- Elbow mounting kit
- Mufflers
- Guard and shield system
- Flange and exhaust expanders
- Flexible fittings
- All C32 engines have 203 mm (8 in) exhaust outlets
- Flanges
- Exhaust through the wall kit
General
- US aid emblem
- Special paint
Generator and Attachments
- Medium voltage optional generators
- Low voltage optional generators
Lube System
- Oil level regulator
- Oil pan
- Prelube manual sump pump
Mounting System
- Spring type vibration isolators
- IBC vibration isolators
- Mounting base types
- Standard package isolators
Power Connections
- Center post busbars
- Low voltage connection cables
- Neutral grounding connection
Power Termination
- Circuit breakers, UL listed
- Circuit breakers, IEC compliant
Special Tests / Reports
- Standard engine test
- IBC seismic Certifications
- PGS Test report @ 1.0 power factor
- Custom generator TVA report
- Generator test report
- Standard genset Torsional Vibration Analysis (TVA) report
- PGS Test report @ 0.8 power factor
- CSA test and certification
- OSHPD seismic Certifications
Starting / Charging
- 10 Amp enclosure Battery charger
- 35 Amp Battery charger
- Space heater
- Jacket water heater
- Electric starting motor - Standard/heavy duty
- Heavy duty starting system
- 10 Amp Battery charger
- 20 Amp Battery charger

Switchgear and Paralleling Controls

Generator switchgear controls, protects and isolates electrical equipment. Our paralleling switchgear is available in low-voltage, medium-voltage, and high-voltage configurations to automatically start, synchronize and parallel generators with the load.

Model	Configuration	Operating Temperature	Standard Widths
Cat Switchgear	IP4X	35 °C / 40 °C @ 1 hr, option for 0…50 °C (32…122 °F)	600 mm for ABB Emax2 E2 1600 - 2500A. 750 mm for ABB Emax2 E4 3200 - 4000A. 1200 mm for ABB Emax2 E6 4000 - 6300A.

Enclosures

Model	Height	Width	Weight
C27 and C32 Sound Attenuated Enclosure	148.0 in	100.6 in	13122 lb
