3406C
- Bore
- 5.4 in / 137.2 mm
- Stroke
- 6.4 in / 165.1 mm
- Displacement
- 893.39 in³ / 14.6 l

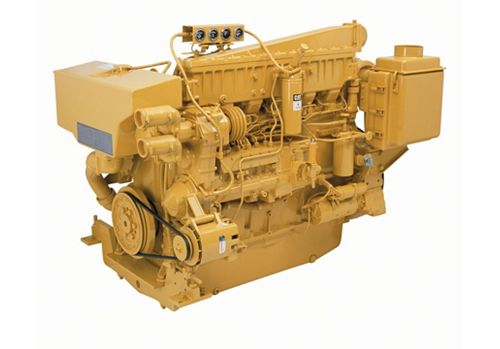

The mechanically governed 3406C marine propulsion engine is available “A” rating of 365 bhp (272 bkW) and a “B” rating of 400 bhp (298 bkW).
| Power Rating | |
|---|---|
| Power Range | 365-400 bhp (272-298 bkW) |
| Engine Specifications | |
|---|---|
| Speed Range | 1800 rpm |
| Emissions | Non-Certified |
| Aspiration | TA |
| Bore | 5.4 in / 137.2 mm |
| Stroke | 6.4 in / 165.1 mm |
| Displacement | 893.39 in³ / 14.6 l |
| Rotation from Flywheel End | Counterlockwise |
| Configuration | In-line 6, 4-Stroke-Cycle Diesel |
| Refill Capacity | 34.0 L (9.0 gal) |
| Governor | Mechanical |
| Oil Change Interval | 250 hrs |
| Cooling | Heat exchanger or keel-cooled |
| Dimensions & Weights | |
|---|---|
| Length | 57.25 in / 1454.2 mm |
| Dry Weight - Approximate | 2921 lb / 1325 kg |
| Height | 50.33 in / 1278.5 mm |
| Width | 35.96 in / 913.5 mm |
