C13B
- Maximum Power
- 577 hp / 430 kW
- Maximum Torque
- 1943 lb-ft @ 1400 rpm / 2634 Nm @ 1400 rpm
- Minimum Power
- 456 hp / 340 kW

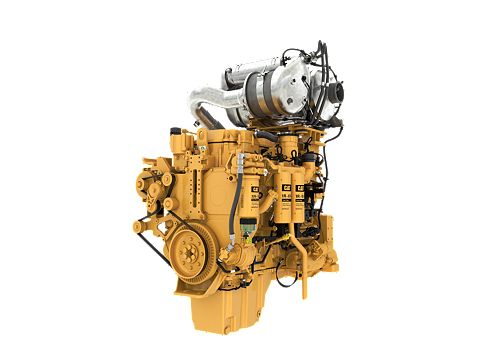

The Cat?? C13B engine supplies remarkable power and torque in a smaller, lighter engine package. With a aftertreatment that is 65% smaller and 54% lighter than its current equivalent and over 34 kW/L of power density, the C13B is designed to allow OEMs to downsize their engine platforms, lower installation costs and maximize uptime by providing long life in the toughest applications.
| Power Rating | |
|---|---|
| Maximum Power | 577 hp / 430 kW |
| Maximum Torque | 1943 lb-ft @ 1400 rpm / 2634 Nm @ 1400 rpm |
| Rated Speed | 1800-2100 rpm |
| Minimum Power | 456 hp / 340 kW |
| Emission Standards | |
|---|---|
| Emissions | EU Stage V, U.S. EPA Tier 4 Final, Korea Stage V, Japan 2014, China NRIV |
| General | |
|---|---|
| Engine Configuration | In-Line 6 |
| Bore | 5.1 in / 130 mm |
| Stroke | 6.2 in / 157 mm |
| Displacement | 762.8 in³ / 12.5 l |
| Compression Ratio | 15.8:1 |
| Aspiration | Turbocharged-Aftercooled (TA) |
| Combustion System | Direct Injection |
| Rotation from Flywheel End | Counterclockwise |
| Aftertreatment | DOC+DPF+SCR |
| Engine Dimensions - Approximate | |
|---|---|
| Length | 50 in / 1274 mm |
| Width | 39 in / 994 mm |
| Height | 45 in / 1134 mm |
| Weight - Net Dry - Basic Operating Engine Without Optional Attachments | 2480 lb / 1125 kg |
| Aftertreatment Dimensions | |
|---|---|
| Length | 35.3 in / 896 mm |
| Width | 31.8 in / 807 mm |
| Height | 18.1 in / 460 mm |
| Weight | 220 lb / 100 kg |
