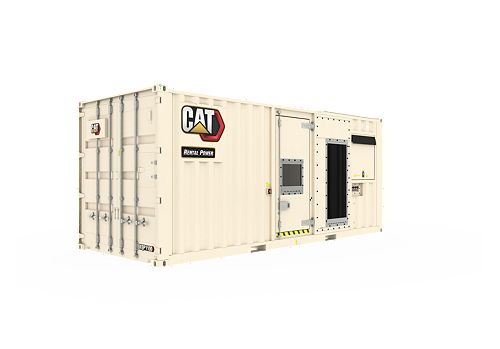

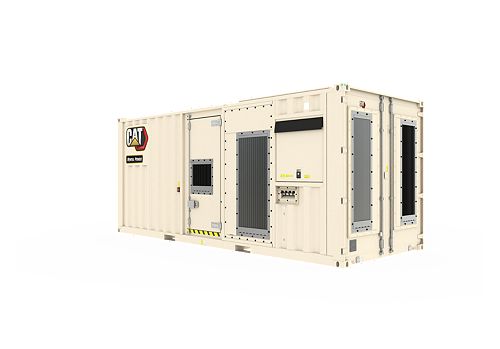

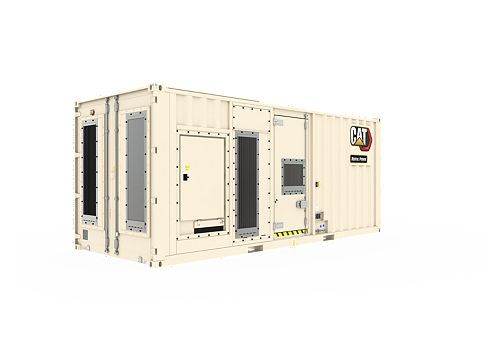

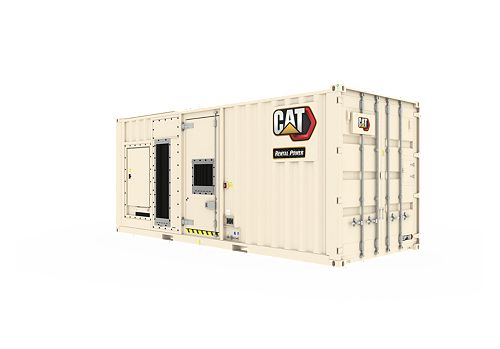

XQP1100

Width
96 in / 2438 mm
Height
102 in / 2591 mm
Length
240 in / 6096 mm

Packaging 1100 kVA in a 20’ ISO transportable container, the power density offering in the XQP1100 is increased and paralleling controls with an Electrically Operated (EO) breaker are featured as standard equipment. The XQP1100 is a fully self-contained unit capable of running eight hours without refueling.

Generator Set
Rating Prime 1100 kVA
Frequency 50/60 Hz
Voltage 127 - 480 V
Engine
Engine Cat C32
Fuel Diesel
Dimensions
Width 96 in / 2438 mm
Height 102 in / 2591 mm
Length 240 in / 6096 mm
Weight - With Lube Oil and Coolant 32053 lb / 14539 kg
Fuel consumption Best Fuel Efficiency
100% Load 50Hz 57.6 gal/hr / 218.2 l/hr
100% Load 60Hz 67 gal/hr / 253.6 l/hr
75% Load 50Hz 43.2 gal/hr / 163.4 l/hr
75% Load 60Hz 50 gal/hr / 189.2 l/hr
50% Load 50Hz 30.6 gal/hr / 116 l/hr
50% Load 60Hz 133.6 l/hr / 35.3 gal/hr
Noise rating (with enclosure) Best Fuel Efficiency
Sound Power @ 1 meters (3 feet) @ 75% of rating (50Hz) 84 dB(A)
Sound Power @ 1 meters (3 feet) @ 75% of rating (60Hz) 85 dB(A)

Standard Equipment

  • CAT C32 Diesel Engine
    • Turbo charged.
  • Generator
    • E3875L4 frame.
  • Air Filter
    • Cyclonic/paper with dust cup and service indicator.
  • Cat Connect remote monitoring
    • Provides package monitoring and management.
  • Cooling System
    • Package mounted radiator with vertical air discharge. Filled from factory.
  • Charging / Starting System
    • 24V heavy duty starting motor and charging alternator c/w battery isolator.
  • Fuel System
    • Fuel tank with 6 way directional valve for external supply.
  • Control Panel
    • Digital EMCP4.4 set mounted controller.
  • Distribution
    • Single, robust enclosure for controls and distribution c/w 4 pole circuit breaker and safety cut off.
  • Structure
    • Heavy Duty steel base frame with integral fuel tank. Fork lift pockets. Dragging bars. Lifting frame and 4 point lift. Base frame is wider than enclosure to protect generator set during transportation.
  • Enclosure
    • Sound attenuating, galvanised steel enclosure with exceptional noise reduction performance.
  • Exhaust
    • Integrated spark arresting silencer.
  • Lube Oil
    • On engine primary and secondary oil filters. Filled from factory.
  • General
    • Factory tested and inspected.
