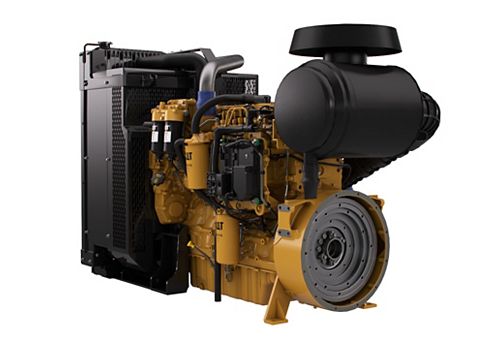

C7.1

Emission Standards
Emissions	China Nonroad Stage III, Brazil MAR-1, UN ECE R96 Stage IIIA

General
Engine Configuration	Inline 6, 4-Stroke-Cycle Diesel
Bore	4.1 in / 105 mm
Stroke	5.3 in / 135 mm
Displacement	427.7 in³ / 7.01 l
Compression Ratio	16.8:1
Aspiration	Turbocharged Aftercooled (TA)
Rotation from Flywheel End	Counterclockwise
Aftertreatment	-

Air Inlet
- Standard air cleaners
Control System
- Full electronic control system, all connectors and wiring looms waterproof and designed to withstand harsh off-highway environments
- Flexible and configurable software features and well-supported SAE J1939 CAN bus enables highly integrated machines
Cooling System
- Top tank temperature 108° C (226° F) as standard to minimize cooling pack size
- 50:50 water glycol mix
- Cooling system designed for operation in 48 C (118 F) ambient.
Flywheels and Flywheel Housing
- Wide choice of drivetrain interfaces, including SAE No. 1, SAE No. 2, and SAE No. 3 configurations
Fuel System
- Electronic high pressure common rail
- ACERT Technology
- Innovative filter design to ensure maximum protection of the engine
Lube System
- Wide choice of sumps for different applications
Power Take Off
- SAE A or SAE B flanges on left-hand side. Right-hand side twin PTO also available. Engine power can also be taken from the front of the engine on some applications.
General
- Paint: Caterpillar yellow
