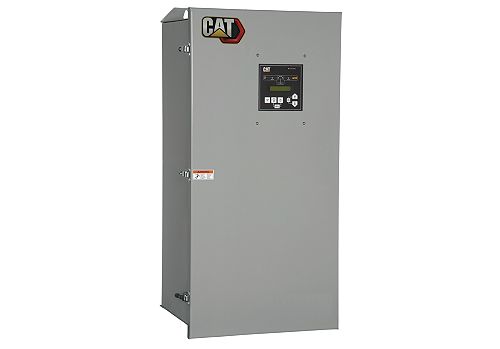

ATC Contactor-Based Automatic Transfer Switch
Cat® transfer switches are designed for a variety of standby power applications. They provide flexibility, reliability and value in a compact package. The open and delayed transition contactor-based Automatic Transfer Switch (ATS) provides fully functioning transfer in Applications where a momentary loss of power is acceptable during transfer and retransfers between normal and emergency power supply.
The closed transition contactor-based ATS is designed to Meet application requirements where emergency back up power is required with no momentary loss of power by connecting both sources before the transfer occurs. Closed transition also permits periodic testing of the emergency power source without interrupting power to the loads.
| Technical Summary | |
|---|---|
| Rating Range | 40-3000A |
| Transfer Type | Open / Closed Transition |
| Switch Type | Contactor Based |
| Ratings | |
|---|---|
| Control Power | Wall Mount 40-600A 2 or 3 Pole<br>Floor Standing 600A 4 Pole & 800-1200A 2, 3, or 4 Pole |
| Two-Position Contactors | Two-position contactors 40-400A |
| Three-Position Contactors | Three-position contactors 40-1200A |
| System Voltage Application | Up to 600 Vac, 50/60 Hz |
| Applicable Testing | UL 1008 listed, CSA C22.2 No. 178 certified, IBC 2006, CBC 2007 and OSHPD |
