C280-8

Bore
11 in / 280 mm
Stroke
11.8 in / 300 mm
Displacement
9031 in³ / 148 l

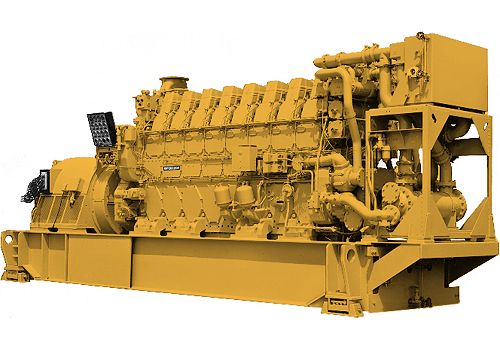

Cat C280-8 Marine Generator Set

Power Rating
Power Range 2200 - 2600 ekW
Generator Set Specifications
Frequency 50 / 60
Speed 1000 rpm (50 hz) or 900 rpm (60 hz)
Minimum Rating 2200 ekW (2938 kVA)
Maximum Rating 2600 ekW (3025 kVA)
Emissions/Fuel Strategy EPA Tier 2, IMO II
Engine Specifications
Aspiration Turbocharged-Aftercooled
Bore 11 in / 280 mm
Stroke 11.8 in / 300 mm
Displacement 9031 in³ / 148 l
Governor Type Electronic
Fuel System EUI
Compression Ratio 50 Hz 13.1
Compression Ratio 60 Hz 13:1
Engine Model In-line 8, 4-Stroke-Cycle Diesel
Generator Set Dimensions
Length 316.5 in / 8040 mm
Width 77.2 in / 1961 mm
Height 155 in / 3937 mm
Weight - Estimated 25000 lb / 11340 kg

Standard Equipment

  • General
    • LH and RH service availability
  • Air Inlet System
    • Aftercooler, fresh water, corrosion resistant coated (air side)
    • Air inlet adapter - Straight / 90 degree / 35 degree
  • Ain Inlet System
    • Crankcase breathers, top mounted
    • Single turbocharger, rear-mounted, engine oil lubricated
  • Control System
    • Dual Caterpillar ADEM A4 Electronic Engine Control Modules
    • Rigid Wiring Harness
  • Cooling System
    • Aftercooler/oil cooler and jacket water pumps (gear driven)
    • Engine coolant water drains
    • Single Circuit / Separate Circuit Aftercooler
  • Exhaust System
    • Dry, gas tight, exhaust manifold
    • Turbo speed sensors - overspeed protection
  • Fuel System
    • Fuel transfer pump, gear driven
    • Duplex Fuel filters
    • Electronically Controlled Unit Injectors
    • Electronically Controlled Unit Injectors
  • Insturmental
    • CAT Alarm & Protection System
  • Lube System
    • Oil pump, gear driven
    • 2 element oil cooler, engine mounted
    • Duplex centrifugal oil filter - engine mounted
    • Prelube pump - air / electric
  • Protection System
    • Crankcase explosion relief valves

Optional Equipment

  • Exhaust System
    • Exhaust manifold shielding - soft
  • Fuel System
    • SOLAS shielding
  • Lube System
    • Front and rear oil pan drains
    • Wet sump
    • SOLAS shielding
  • Protection System
    • Oil mist detector
    • Cylinder pressure relief valves
