C2.2
- Displacement
- 135 in³ / 2.2 l
- Bore
- 3.31 in / 84 mm
- Stroke
- 3.5 in / 90 mm

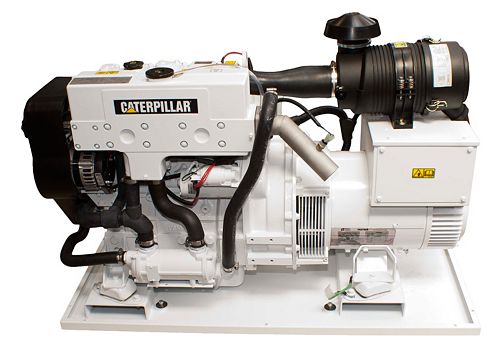

Cat® C2.2 Diesel Marine Generator Set
| Power Rating | |
|---|---|
| Power Range | 15 - 25 ekW |
| Generator Set Specifications | |
|---|---|
| Frequency | 50 / 60 |
| Minimum Rating | 15 ekW (15 kVA) |
| Maximum Rating | 25 ekW (25 kVA) |
| Engine Specifications | |
|---|---|
| Displacement | 135 in³ / 2.2 l |
| Aspiration | Naturally Aspirated / Turbocharged |
| Governor Type | Electrical Ischronous |
| Bore | 3.31 in / 84 mm |
| Stroke | 3.5 in / 90 mm |
| Emissions | U.S. EPA Tier 3 |
| Configuration | Inline 4, 4-Stroke Cycle diesel |
| Refill Capacity | Lube Oil System w/oil filter change: 10.6 L (2.8 gal) |
| Oil Change Interval | 500 hrs |
| Rotation from Flywheel End | Counterclockwise |
| Cooling | Hex or Single Circuit Keel |
| Rated Engine Speed | 1500 / 1800 rpm |
| Generator Set Dimensions | |
|---|---|
| Length | 47.9 in / 1,219 mm (open) 50.7 in / 1,290 mm (enclosed) |
| Width | 22.3 in / 567 mm (open) 24.7 in / 628 mm (enclosed) |
| Height | 32.8 in / 835 mm (open) 31.0 in / 775 mm (enclosed) |
| Engine Dry Weight | 857-1,027 lb / 386-466 kg |
