C32

Bore
5.71 in / 145 mm
Stroke
6.38 in / 162 mm
Displacement
1959 in³ / 32.1 l

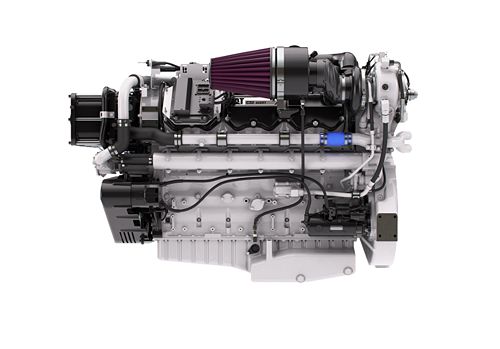

C32 propulsion engine ratings of 1925 mhp (1900 bhp) 1417 bkW, 1825 mhp (1800 bhp) 1342 bkW, and 1622 mhp (1600 bhp) 1193 bkW are available with heat exchanger cooling. These ratings are compliant for U.S. EPA Tier 3 Recreational, EU Stage IIIA, and IMO II. The 1600 and 1800 bhp ratings are also meet US EPA Tier 3 Commercial Standards. The engine configuration includes an air cleaner and CCV system as well as jacket water aftercooling. Additional features include a “plug-in PTO”, an MECP I control panel, and hybrid fuel lines. The MECP I panel has a monochrome display for engine parameters, external outputs for customer installed visible and audible alarms, Start/Stop buttons, and an Off/Local/Remote switch.

Ratings
Power Range 1600-1900 bhp (1193-1417 bkW)
Engine
Speed Range 2300 rpm
Emissions IMO II, U.S. EPA Tier 3 Recreational, RCD, China Stage II
Aspiration Twin Turbocharged-aftercooled
Bore 5.71 in / 145 mm
Stroke 6.38 in / 162 mm
Displacement 1959 in³ / 32.1 l
Rotation from Flywheel End Counterclockwise
Configuration Vee 12, 4-Stroke Cycle diesel
Dimensions & Weights
Length 82.9 in / 2106 mm
Width 58.3 in / 1482 mm
Height 56.9 in / 1445 mm
Dry Weight 6780 lb / 3075 kg

Standard Equipment

  • STANDARD EQUIPMENT
    • ADEM IV Electronic Control Module
    • Air Cleaner / Fumes Disposal
    • Electronic Diagnostics and Fault Logging
    • Engine and Transmission Monitoring
    • Sea Water Aftercooler
    • Titanium Plate Heat Exchanger with Expansion Tank
    • Gear-driven JW and SW pumps
    • Water-cooled Exhaust Manifolds and Turbochargers
    • MEUI Fuel System
    • Fuel Priming and Transfer Pump
    • 250-hr Oil Pan (Shallow Sump)
    • RH or LH Service Side Options

Optional Equipment

  • OPTIONAL ATTACHMENTS
    • 120V or 240V Jacket Water Heater
    • SAE A or B PTO (LH or RH rear)
    • 75A or 105A Alternator
    • Spray Shielding
