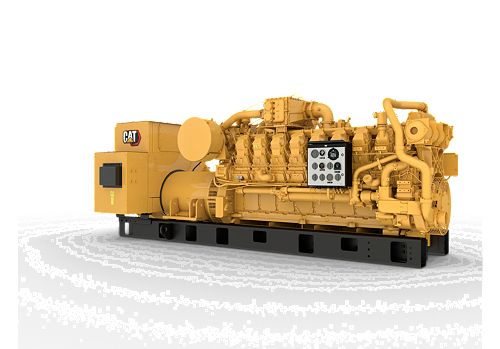

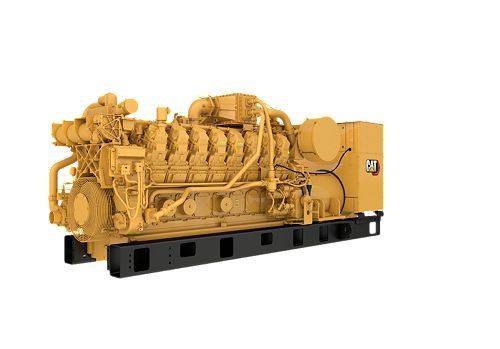

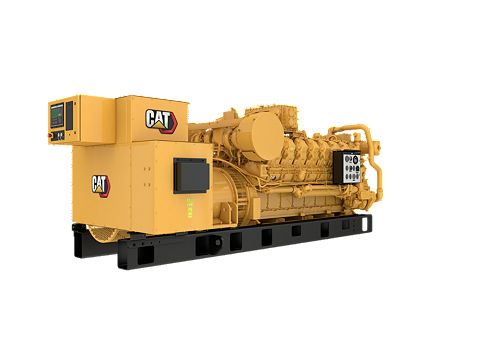

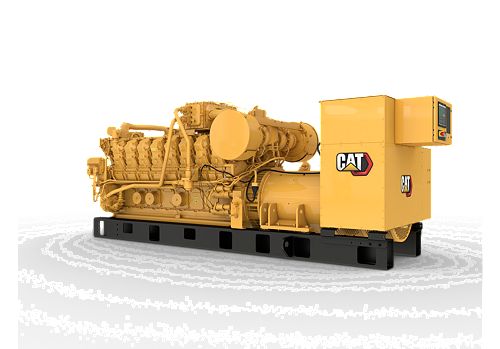

G3516A

Displacement
4210 in³ / 69 l
Bore
6.7 in / 170 mm
Stroke
7.5 in / 190 mm

From natural gas-fueled combined heat and power (CHP) systems and emergency power for facilities, to renewable biogas energy to support the local grid, or electricity generated from coal mine gases, Caterpillar has a wide range of reliable gas power solutions.

Generator Set Specifications
Maximum Continuous Rating 1085 ekW
Fuel Type Natural Gas, Biogas, Coal Gas
Maximum Electrical Efficiency 36.50%
Maximum Standby Rating 1000 kw
Frequency 50 / 60 Hz
RPM 1200 / 1500 rpm
Engine Specifications
Engine Model G3516A
Displacement 4210 in³ / 69 l
Aspiration TA
Bore 6.7 in / 170 mm
Stroke 7.5 in / 190 mm
Generator Set Dimensions
Length 193 in / 4913 mm
Width 68 in / 1736 mm
Height 76 in / 1940 mm
Dry Weight - Genset 27670 lb / 12549 kg

Standard Equipment

  • Exhaust
    • Dry exhaust manifolds, insulated and shielded
  • Generator
    • Anti-condensation space heater
    • Permanent magnet excitation
    • SR4B
    • Caterpillar's Digital Voltage Regulator (CDVR) with 3-phase sensing and KVAR/PF control
  • Starting/Charging
    • 24V starting motors
  • General
    • Crankshaft vibration damper and guard
    • Paint - Caterpillar Yellow except rails are gloss black
    • Operation and maintenance manuals
    • Parts book

Optional Equipment

  • Air Inlet
    • Air inlet adapters
  • Cooling
    • Inlet/Outlet connections
  • Exhaust
    • Flexible fitting
    • Elbow
    • Flange
    • Muffler and spark-arresting muffler with companion flanges
    • Exhaust expander
  • Generator
    • Low voltage extension box
    • Generator air filter
    • European bus bar
    • Cable access box
  • Start/Charging
    • Jacket water heater
    • Charging alternator
    • Battery with cable and rack (shipped loose)
    • Battery charger
    • Oversized battery
  • General
    • Engine barring group
    • EEC D.O.I and other certifications
    • Crankcase explosion relief valve
