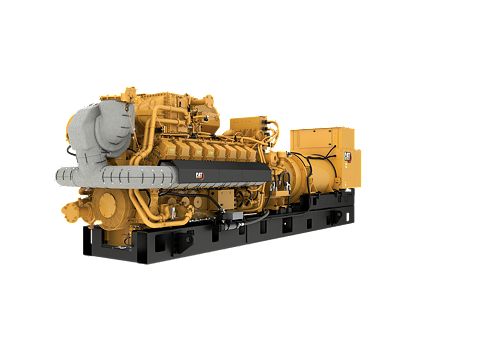

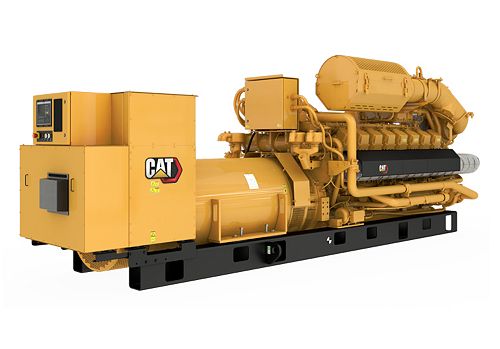

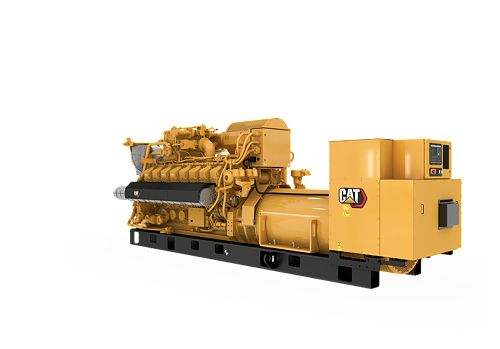

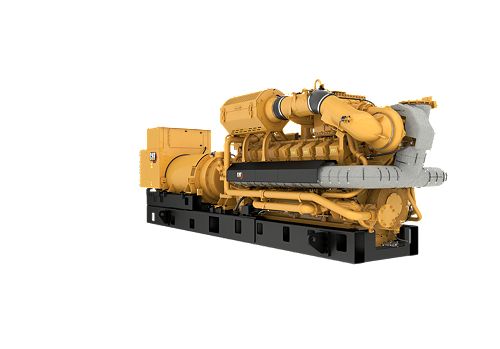

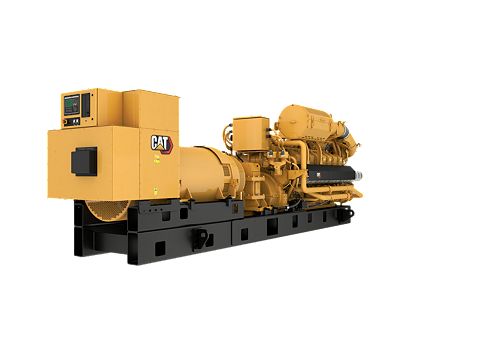

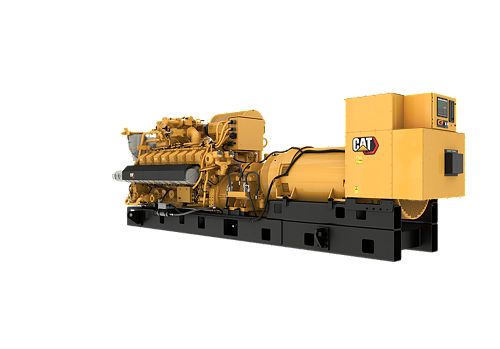

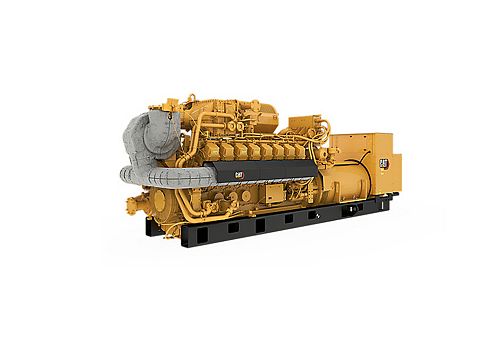

G3516H

Specifications
Equipment

Generator Set Specifications
Continuous Rating	2027 / 2007 ekW @ 1.0pf
Fuel Type	Natural Gas, Hydrogen Blend (up to 25%)
Maximum Electrical Efficiency	45.30%
Frequency	50 / 60 Hz
RPM	1500 rpm

Engine Specifications
Engine Model	G3516H
Displacement	4765 in³ / 78 l
Aspiration	TA
Bore	6.7 in / 170 mm
Stroke	8.5 in / 215 mm
Compression Ratio	12.1
Fuel System	Natural Gas

Generator Set Dimensions
Length	291 in / 7395 mm
Width	84 in / 2139 mm
Height	95 in / 2402 mm
Dry Weight - Genset	40384 lb / 18315 kg

Standard Equipment

Control Panels
- EMCP4.3
Air Inlet
- Package Mounted Air Cleaner with service indicator
- Two-element single-stage air cleaner with enclosure and service indicator
Cooling
- Jacket water and SCAC driven thermostats
- ANSI Class 150/DN custom flange connections for JW inlet and outlet
- Engine driven water pumps for jacket water and after cooler
- 2nd stage SCAC-Cat Flange
Exhaust
- Center section cooled turbocharger with Cat flanged outlet
- Individual exhaust port and turbocharger outlet wired to integrated temperature sensing module (ITSM) with GCEM providing alarms and shutdowns
- Dry exhaust manifolds, insulated and shielded
- Cat-flanged face outlet on turbocharger
Fuel System
- Throttle plate, 24V DC actuator, controlled by GECM
- Electronic fuel metering valve
- Fuel system is sized for 31.5 to 47.2 MJ/NM3 dry pipeline natural gas with pressure of 10.2 to 34.5KPa to the engine fuel control valve
Ignition System
- Electronic Ignition System (controlled by ADEM A4)
- Individual Cylinder Detonation Sensitive Timing (DST)
Generator
- Permanent Magnet Excitiation
- Anti-condensation space heater
- Winding temperature detectors
- SR5
- Reactive Droop
- Caterpillar's Digital Voltage Regulator (CDVR) with 3-phase sensing and KVAR/PF control
General
- Crankshaft vibration damper and guard
- Paint - Caterpillar Yellow except rails and radiators gloss black
- RH Service
- Parts book
- Operation and maintenance manuals
Governing System
- ADEM A4 4-20mA (0-5V) Speed Input
Starting/Charging
- 24V starting motors

Optional Equipment

Air Inlet
- Mounting brackets and piping
- Air cleaner with precleaner
- Heavy Duty air cleaner with precleaner
Circuit Breakers
- No UV trip or package mounted CB Wiring
- Frame Mounting
- MP-Frame 3 Pole Bottom Cable Entry or MP- Frame 6 Pole Bottom Cable Entry
- 4000A, 3-Pole IEC Rated
- 2500/3000/3200A or 4000/5000A Neutral Current Transformer Automatic Selection
- Lower & Upper Covers, Extension Box Roof Cover
- Busbar Mounting
- 4000A, 3-Pole UL Rated
Control Panels
- Remote monitoring software
- Discrete I/O Module, 12 Digital Inputs, 8 'Form C' Relay
- Remote RS485, 32-light Annunciator
- Cat Connect: Ehternet, Satellite, Cell Telematics
- Cross-Current Compensation Current Transformer-- 8.7/15 kV Classes
- RTD Module
- Local/Remote PC Monitorring
- 16 Point/32 Light Annunciator with NFPA99-110/CSA282 Configuration
- Remote Monitoring & Control
- Synchronizing module
- Local alarm module
Cooling
- Jacket water coolant heater
- Inlet/Outlet connections
Exhaust
- Flange
- Muffler and spark-arresting muffler with ANSI companion flanges
- Elbow
Generator
- Manual voltage control
- Generator air filter
- Low voltage extension box
- Medium and high voltage generators and attachment
- Cable access box
- Bearing temperature detectors
Starting/Charging
- 24V Battery Charger
- 60A, 24V charging alternator (requires engine driven pumps)
General
- US AID emblem
- Special paint order
- Battery diconnect switch
- Digital diagnostic tool
- Tool set
- Battery with cables and rack (shipped loose)
Grid Code Compliance
- 60 Hz: USA
- 50 Hz: Germany, Great Britain, Belgium, Romania, Italy, Ireland, Poland, Netherlands, Spain, France, and European Standard
