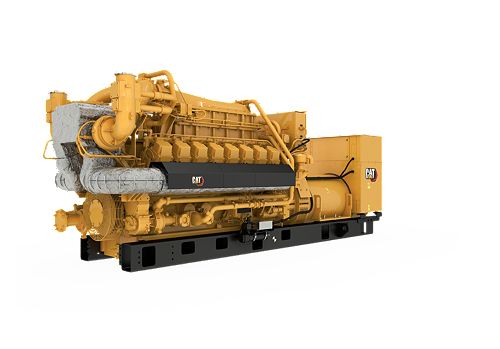

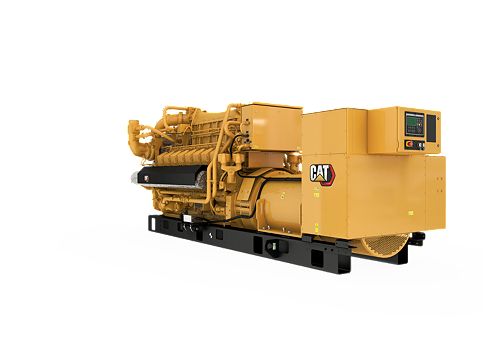

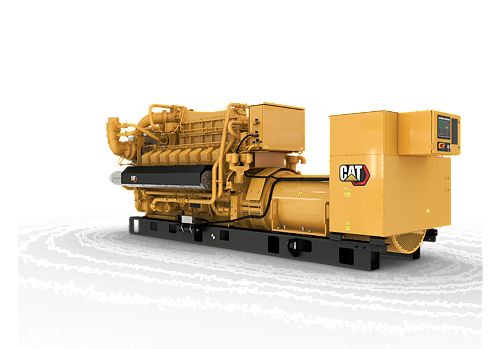

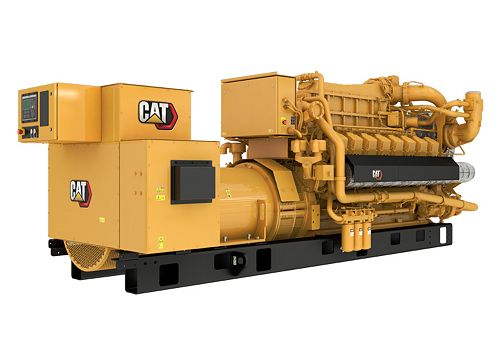

G3516C

Displacement
4210 in³ / 69 l
Bore
6.7 in / 170 mm
Stroke
7.5 in / 190 mm

From natural gas-fueled combined heat and power (CHP) systems and emergency power for facilities, to renewable biogas energy to support the local grid, or electricity generated from coal mine gases, Caterpillar has a wide range of reliable gas power solutions.

Loan Calculator Credit Application
Build & Quote
alt 1
Electric Power Rating Guide Gas Generator Set Ratings Guide G3516C Natural Gas Data Sheet
Generator Set Specifications
Continuous Rating 1660 ekW
Fuel Type Natural Gas
Maximum Electrical Efficiency 37.70%
Maximum Standby Rating 1500
Frequency 50 / 60 Hz
RPM 1500/1800
Engine Specifications
Engine Model G3516C
Displacement 4210 in³ / 69 l
Aspiration TA
Bore 6.7 in / 170 mm
Stroke 7.5 in / 190 mm
Generator Set Dimensions
Length 219 in / 5553 mm
Width 72 in / 1828 mm
Height 92 in / 2340 mm
Dry Weight - Genset 31226 lb / 14161 kg

Standard Equipment

  • Air Inlet
    • Two-element single-stage air cleaner with enclosure and service indicator
  • Control Panels
    • EMCP 4.3
  • Cooling
    • Jacket water and SCAC driven pumps and bypass lines
    • 2nd Stage SCAC-Cat Flange
    • Engine driven water pumps for jacket water and aftercooler
    • Jacket water and SCAC thermostats
    • ANSI/DN customer flange connections for JW inlet and outlet
    • Cat flanges on SCAC circuit
  • Exhaust
    • Integrated Sensing Module (ISM)
    • Cat-flanged face outlet on turbocharger
    • Provides exhaust port temperatures and stack temperature to customer supplied screen via CCM
    • Dry exhaust manifolds, insulated and shielded
  • Fuel System
    • 24V ETR Gas Shutoff Valve
    • Engine installed, fuel metering valve
    • Throttle plate, 24V DC actuator, controlled by ECM
    • Fuel system is sized for 31.5 to 47.2 MJ/NM3 dry pipeline natural gas with pressure of 10.2 to 34.5KPa to the engine fuel control valve
    • Fuel Filter
  • Ignition System
    • Individual Cylinder Detonation Sensitive Timing (DST)
    • Electronic Ignition System (controlled by ECM)
  • Fuel system
    • Electronic fuel metering valve
  • Generator
    • Anti-condensation space heater
    • Busbar connections
    • Class H Insulation & Class F temperature rise
    • Reactive Droop
    • Permanent Magnet Excitation
    • 3-phase brushless, salient pole
    • Caterpillar's Digital Voltage Regulator (CDVR) with 3-phase sensing and KVAR/PF control
    • SR4B
    • Winding temperature detectors
  • General
    • RH Service
    • Operation and maintenance manuals
    • Crankshaft Vibration Damper and Guard
    • Parts Book
  • Starting/Charging
    • 24V starting motors

Optional Equipment

  • Air Inlet
    • Vertical, horizontal dual element air cleaner
    • Enclosure mounting brackets and piping
    • Air cleaner with precleaner
  • Control Panel
    • Local NFPA99-110 Alarm Module w/LEDs
    • Synchronizing Module
    • Remote 24V 8/16 Light Annunciator
    • Engine Failure Relay
    • PL1000E/PL1000T Communications Module
    • Custom 8-Light Alarm Module
  • Cooling
    • Inlet/Outlet connections
    • Jacket water coolant heater
    • Aftercooler air lines, aftercooler core replacement
  • Exhaust
    • Flexible Fittings
    • 14" Flange Kit
    • 406 mm Elbow Kits
    • 406 mm flange kits
    • Mufflers (15/18/25 dBA Attenuation) and spark-arresting muffler with ANSI companion flanges
    • 16" Spark Arresting Muffler
    • 356-406mm Flange and Exhaust Expander
    • 15/18/25 dBA Muffler Attenuation
  • Fuel System
    • 207-276kPa, 30-40 psi gas knockdown regulator
    • 14-69 kPa (2-10 psi) gas pressure regulator
    • 24VDC Gas Shutoff Valve, Gas Knockdown Regulator
    • Fuel Filter, Gas Filter
  • Generator
    • Cable access box
    • 8.7/15 kV Cross, Differential, Current Transformers (CCCT, DCT, CT)
    • Medium and high voltage generators and attachment
    • 480/4160/13200 Volt Generator Options (60 Hz)
    • Generator air filter
    • Bearing temperature detectors
    • European Bus Bars
    • 415/400/380, 3300/6600/11000 Volt Generator Options (50 Hz)
    • Annunciator Modules
    • Generator Removal
    • Low voltage extension box
  • Governing System
    • Load share module
  • General
    • Special paint order
    • Tool set
    • US AID Emblem
    • Barring group
    • Digital diagnostic tool
  • Starting/Charging
    • 60A, 24V charging alternator (requires engine driven pumps)
    • Battery removal
    • 20A battery charger
    • Battery disconnect switch
    • Battery with cables and rack (shipped loose)
