3054C

Maximum Power
130 HP / 97 kW
Maximum Torque
369 lb-ft @ 1400 rpm / 500 Nm @ 1400 rpm
Minimum Power
69.7 HP / 52 kW

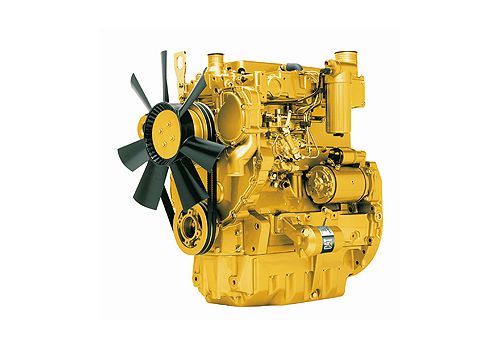

The Cat® 3054C Industrial Diesel Engine is offered in ratings ranging from 52-97 bkW (69.7-130 bhp) @ 2000-2400 rpm. These ratings meet U.S. EPA Tier 2 equivalent and EU Stage II equivalent emission standards and are available for other regulated and non-regulated areas. Industries and applications powered by 3054C engines include: Agriculture, Aerial Lifts, Aircraft Ground Support, Bore/Drill Rigs, Chippers/Grinders, Compactors/Rollers, Compressors, Construction, Cranes, Crushers, Feller Bunchers, Forestry, Forklifts, General Industrial, Harvesters, Hydraulic Power Units, Irrigation Equipment, Loaders/Forwarders, Material Handling, Mining, Mobile Earthmoving Equipment, Mobile Sweepers, Paving Equipment, Pumps, Skidders, Specialty Ag Equipment, Sprayers, Trenchers, Turf and Landscaping and Underground Mining Equipment.

Loan Calculator Credit Application
Build & Quote
alt 1
Power Rating
Maximum Power 130 HP / 97 kW
Maximum Torque 369 lb-ft @ 1400 rpm / 500 Nm @ 1400 rpm
Rated Speed 2200-2400 rpm
Minimum Power 69.7 HP / 52 kW
Emission Standards
Emissions U.S. EPA Tier 2 Equivalent, EU Stage II Equivalent
General
Engine Configuration Inline 4, 4-Stroke-Cycle Diesel
Bore 4.1 in / 105 mm
Stroke 5 in / 127 mm
Displacement 269 in³ / 4.4 l
Compression Ratio 16.2:1
Aspiration Naturally Aspirated (NA), Turbocharged (T) or Turbocharged Aftercooled (TA)
Combustion System Direct Injection
Rotation from Flywheel End Counterclockwise
Aftertreatment -
Engine Dimensions - Approximate
Length 26.1 in / 663 mm
Width 24.4 in / 620 mm
Height 31.9 in / 810 mm
Weight - Net Dry - Basic Operating Engine Without Optional Attachments 674.6 lb / 306 kg

Standard Equipment

  • Air Inlet System
    • Inlet manifold with choice of inlets.
  • Control System
    • Alternator
    • Starter motor
    • Control Panel
    • Glow plug starting aid
  • Cooling System
    • Top tank temperature 108° C (226° F) as standard to minimize cooling pack size
    • 50:50 water glycol mix
  • Flywheels and Flywheel Housing
    • SAE No. 3 flywheel housing
    • Flywheel and starter rings
  • Fuel System
    • Fuel filter positions
  • Lube System
    • Lubricating oil filters and breathers
    • Oil filter positions
    • Lube oil sump
  • Power Take Off
    • SAE B Power Take Off (PTO)
  • General
    • Timing case and gear-driven auxiliaries
    • Belt-driven auxiliaries
    • Engine mountings
    • Gauges
    • Displays
    • Power and torque curve tailoring
    • Paint: Caterpillar yellow, with optional colors available at request
