3516
- Maximum Power
- 1985 hp / 1480 kW
- Minimum Power
- 1900 hp / 1417 kW
- Bore
- 6.7 in / 170 mm

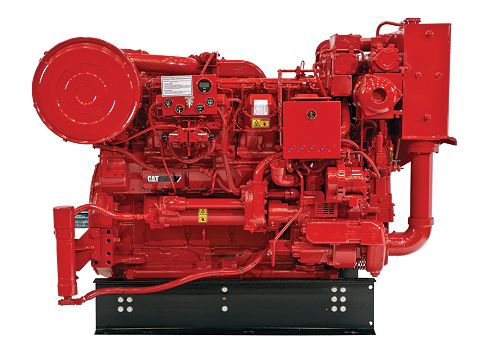

The Cat?? 3516 Industrial Diesel Fire Pump Engine is offered in ratings ranging from 1417-1480 kW (1900-1985 hp) @ 1460-1750 rpm. These ratings are non-certified, not FM Approved and not UL Listed. They are available for global non-regulated areas. Starting on demand is a must for a fire pump engine - always. Cat?? fire pump engines have a reputation for reliable starts and long efficient service.
| Power Rating | |
|---|---|
| Maximum Power | 1985 hp / 1480 kW |
| Rated Speed | 1460-1750 rpm |
| Minimum Power | 1900 hp / 1417 kW |
| Emission Standards | |
|---|---|
| Emissions | Non-Certified. Available for global non-regulated areas. Not FM Approved. Not UL Listed |
| General | |
|---|---|
| Engine Configuration | V-16, 4-Stroke-Cycle Diesel |
| Bore | 6.7 in / 170 mm |
| Stroke | 7.5 in / 190 mm |
| Displacement | 4210 in³ / 69 l |
| Compression Ratio | 13.0:1 |
| Aspiration | Turbocharged Aftercooled (TA) |
| Rotation from Flywheel End | Counterclockwise |
| Aftertreatment | - |
| Engine Dimensions - Approximate | |
|---|---|
| Length | 146.9 in / 3730 mm |
| Height | 74.9 in / 1902 mm |
| Weight - Net Dry - Basic Operating Engine Without Optional Attachments | 17800 lb / 8074 kg |
