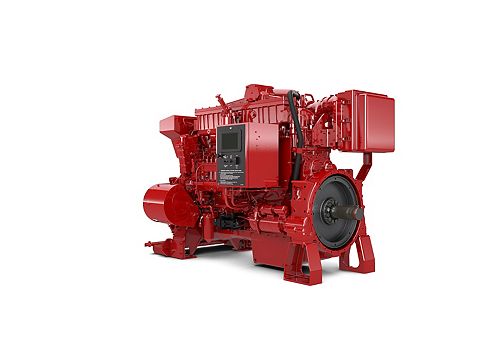

3406C

Emission Standards
Emissions	Non-Certified. Available for global non-regulated areas. FM Approved, UL Listed

Engine Dimensions - Approximate
Length	65.4 in / 1660 mm
Height	52.6 in / 1335 mm

Air Inlet System
- Dry or watercooled manifold and turbocharger
Charging System
- Charging Alternator, 24 volt, 35 amp
Control System
- Hydra-mechanical governor
Cooling System
- Thermostats and housing
- Jacket water pump, gear driven, centrifugal
- Heat exchanger
- Expansion tank
- FM Required Raw Water Cooling Loops: 1.5" iron, horizontal or vertical, 1.5" 316 stainless steel, horizontal or vertical
- Optional Radiator, not UL listed or FM approved
Exhaust System
- Exhaust manifold, water-cooled (wet) or dry
- Exhaust elbow, dry, 152 mm (6 in), 4 bolt flange
Flywheels and Flywheel Housing
- SAE No. 1 flywheel
- SAE No. 1 flywheel housing
- SAE standard rotation
Fuel System
- Fuel filter, LH
- Fuel transfer pump
- Primary fuel filter / water separator
Instrumentation
- Instrument panel, LH
- Engine oil pressure gauge
- Fuel pressure gauge
- Water temperature gauge
- Service meter
Lube System
- Crankcase breather
- Oil cooler
- Lube oil filter
- Oil filler in valve cover and dipstick, both RH
- Rear sump oil pan
- Oil filler in valve cover
- Dipstick
Mounting System
- Supports
Power Take-Offs
- Flywheel stub shaft
Protection System
- Stop-Start System, automatic (compatible with NFPA 20 requirements, able to be energized from either of two battery sources and capable of manual starter actuation)
General
- Vibration damper and guard
- Lifting eyes
- Paint - fire pump red, optional radiator painted black
