C4.4

Maximum Power
129.4 HP / 96.5 kW
Minimum Power
129.4 HP / 96.5 kW
Bore
4.1 in / 105 mm

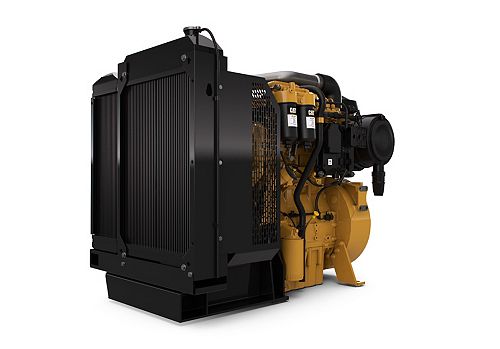

The Cat® C4.4 Industrial Power Unit is offered in ratings ranging from 96.5 bkW (129.4 bhp) @ 2200 rpm. These ratings meet U.S. EPA Tier 3 equivalent, EU Stage IIIA equivalent emission standards. Conveniently pre-configured for a wide range of applications, the Cat® Industrial Power Unit is a complete power package containing a radiator, flywheel, alternator and alternator wiring completely pre-assembled for fast, straightforward installation in a number of OEM, customer and packager applications. These fuel efficient units are ready made for irrigation, industrial, mining and other pump applications.

Power Rating
Maximum Power 129.4 HP / 96.5 kW
Rated Speed 2200 rpm
Minimum Power 129.4 HP / 96.5 kW
Emission Standards
Emissions China Nonroad Stage III, Brazil MAR-1, UN ECE R96 Stage IIIA
General
Engine Configuration Inline 4, 4-Stroke-Cycle Diesel
Bore 4.1 in / 105 mm
Stroke 5 in / 127 mm
Displacement 268.5 in³ / 4.4 l
Compression Ratio 16.2:1
Aspiration Turbocharged Aftercooled (TA)
Rotation from Flywheel End Counterclockwise
Aftertreatment -
Power Unit Dimensions
Length 53.5 in / 1358 mm
Width 29.5 in / 749 mm
Height 37.9 in / 963 mm
Weight 1146 lb / 520 kg

Standard Equipment

  • Air Inlet System
    • Mounted air filter and turbocharger
  • Control System
    • Available in 12 volt or 24 volt systems
    • Starter motor 12V or 24V
  • Cooling System
    • Fan (pusher or puller)
    • Fan drive
    • Radiator
    • Water pump
  • Flywheels and Flywheel Housing
    • Flywheel
    • SAE No. 3 flywheel housing
  • Fuel System
    • Fuel filter
    • ACERT™ Technology
  • Lube System
    • Oil cooler
    • Lube oil filter
    • Timing case oil filler
  • Mountings
    • Engine mounting brackets
  • Power Take Off (PTO)
    • SAE A or SAE B front PTO (142/280 NM)
  • General
    • Paint: Caterpillar yellow, with optional colors available at request
