C4.4
- Maximum Power
- 108.6 hp / 81 kW
- Minimum Power
- 81.8 hp / 61 kW
- Bore
- 4.1 in / 105 mm

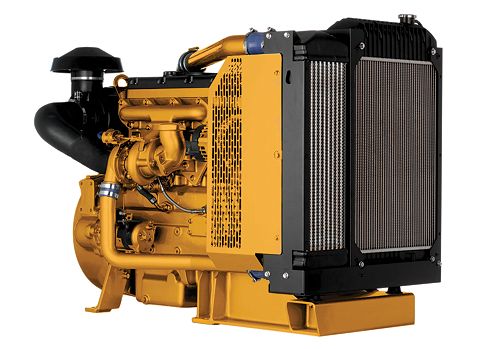

The Cat?? C4.4 Industrial Power Unit is offered in ratings ranging from 61-81 bkW (81.8-108.6 bhp) @ 2200 rpm. These ratings meet U.S. EPA Tier 3 equivalent, EU Stage IIIA equivalent emission standards. Conveniently pre-configured for a wide range of applications, the Cat?? Industrial Power Unit is a complete power package containing a radiator, flywheel, alternator and alternator wiring completely pre-assembled for fast, straightforward installation in a number of OEM, customer and packager applications. These fuel efficient units are ready made for irrigation, industrial, mining and other pump applications.
| Power Rating | |
|---|---|
| Maximum Power | 108.6 hp / 81 kW |
| Rated Speed | 2200 rpm |
| Minimum Power | 81.8 hp / 61 kW |
| Emission Standards | |
|---|---|
| Emissions | UN ECE R96 Stage IIIA |
| General | |
|---|---|
| Engine Configuration | Inline 4, 4-Stroke-Cycle Diesel |
| Bore | 4.1 in / 105 mm |
| Stroke | 5 in / 127 mm |
| Displacement | 268.5 in³ / 4.4 l |
| Compression Ratio | 18.2:1 |
| Aspiration | Turbocharged (T) |
| Rotation from Flywheel End | Counterclockwise |
| Aftertreatment | - |
| Power Unit Dimensions | |
|---|---|
| Length | 49.6 in / 1260 mm |
| Width | 28.9 in / 734 mm |
| Height | 38 in / 964 mm |
| Weight | 1025 lb / 465 kg |
