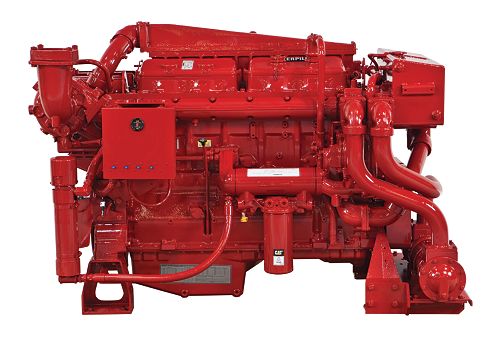

3412C

Emission Standards
Emissions	Non-Certified. Available for global non-regulated areas. Not FM Approved, Not UL Listed

General
Engine Configuration	V-12, 4-Stroke-Cycle Diesel
Bore	5.4 in / 137 mm
Stroke	6 in / 152 mm
Displacement	1648 in³ / 27 l
Compression Ratio	14.5:1
Aspiration	Turbocharged Aftercooled (TA)
Rotation from Flywheel End	Counterclockwise
Aftertreatment	-

Engine Dimensions - Approximate
Length	78.7 in / 2000 mm
Height	55.6 in / 1413 mm
Weight - Net Dry - Basic Operating Engine Without Optional Attachments	5686 lb / 2579 kg

Air Inlet System
- Air cleaner, regular duty with service indicators
- Turbocharged
Cooling System
- Thermostats and housing
- Jacket water pump, centrifugal
- Heat exchanger installed
- Expansion tank
Control System
- Charging alternator 24 volt, 35 amp
- Governor control
- Hydra-mechanical governor
Exhaust System
- Exhaust manifold
- Exhaust elbow, dry. 203 mm (8 in) on all Turbocharged engines and Turbocharged Aftercooled with wet exhaust. 152 mm (6 in) on Turbocharged Aftercooled with dry manifolds.
Flywheels & Flywheel Housings
- SAE No. 0 flywheel
- SAE No. 0 flywheel housing
- SAE standard rotation
Fuel System
- Fuel filter
- Fuel transfer pump
- Primary fuel filter
- Fuel priming pump
Instrumentation
- Instrument panel, LH
- Engine oil pressure gauge
- Fuel pressure gauge
- Water temperature gauge
- Tachometer
Lube System
- Crankcase breather, top mounted
- Oil cooler
- Oil filler in valve cover and dipstick, both RH
- Lube oil filter
- Rear sump oil pan
Mounting System
- Supports
Power Take Off
- Power take-off (PTO) flywheel stub shaft
Protection System
- Stop-Start System, automatic (compatible with NFPA 20 requirements, able to be energized from either of two battery sources and capable of manual starter actuation)
Starting System
- 24 volt, LH electric starting motor
- Jacket water heater (6 kW, 240-480 volt)
General
- Paint: Firepump Red
- Vibration damper and guard
- Lifting eyes
