C13

Maximum Power
536 HP / 400 kW
Minimum Power
385 HP / 287 kW
Bore
5.1 in / 130 mm

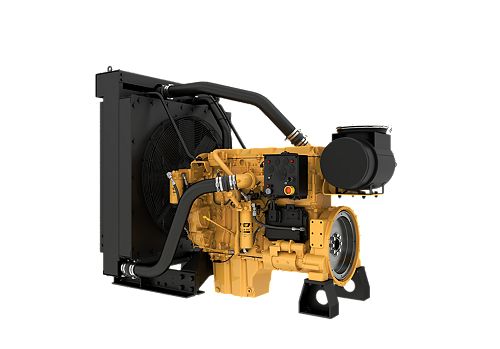

The Cat® C13 IPU configuration not only provides the flexibility and options found on a standard industrial engine, but also comes fitted with air filter and mounting, an integrated cooling system with air and coolant lines, and full wire harnessing with an engine-mounted ECM. Meeting Brazil MAR-1 and UN R96 Stage IIIA emission standards and UN R120 performance standards for measurement of net power and specific fuel consumption, the IPU allows for easier and faster installation, allowing the customer to spend less time worrying about integration and more time doing the work that matters.

Power Rating
Maximum Power 536 HP / 400 kW
Rated Speed 1800-2100
Minimum Power 385 HP / 287 kW
Emission Standards
Emissions Brazil MAR-1, UN R96 Stage IIIA, U.S. EPA Tier 3
General
Engine Configuration Inline 6, 4-Stroke-Cycle Diesel
Bore 5.1 in / 130 mm
Stroke 6.2 in / 157 mm
Displacement 763 in³ / 12.5 l
Compression Ratio 17.0:1
Aspiration Turbocharged Aftercooled (TA)
Rotation from Flywheel End Counterclockwise
Aftertreatment -
Power Unit Dimensions
Length 92 in / 2328 mm
Width 50 in / 1271 mm
Height 71 in / 1816 mm
Weight 3730 lb / 1692 kg

Standard Equipment

  • Air Inlet System
    • Turbocharged
    • Air-to-Air Aftercooled
  • Control System
    • Electronic governing, PTO speed control
    • Programmable ratings
    • Automatic altitude compensation
    • Power compensation for fuel temperature
    • Programmable low and high idle and total engine limit
    • Electronic diagnostics and fault logging
    • Engine monitoring system SAE J1939 broadcast and control
    • ADEM™ A4 Electronic Control Unit (ECU)
  • Cooling System
    • Thermostats and housing, vertical outlet
    • Jacket water pump, centrifugal
    • Water pump, inlet
  • Exhaust System
    • Exhaust manifold, dry
    • Optional exhaust outlet
  • Flywheels and Flywheel Housing
    • SAE No. 1 flywheel housing
  • Fuel System
    • MEUI injection
    • Fuel filter, secondary (2 micron)
    • ACERT™ Technology
    • Fuel transfer pump
    • Fuel priming pump
  • Lube System
    • Crankcase breather
    • Oil cooler
    • Oil filler
    • Lube oil filter
    • Front sump oil pan
    • Oil dipstick
    • Gear driven oil pump
  • General
    • Vibration damper
    • Lifting eyes
    • Cold start capability to -20° C (-4° F)
    • Paint: Caterpillar yellow, with optional colors available at request
