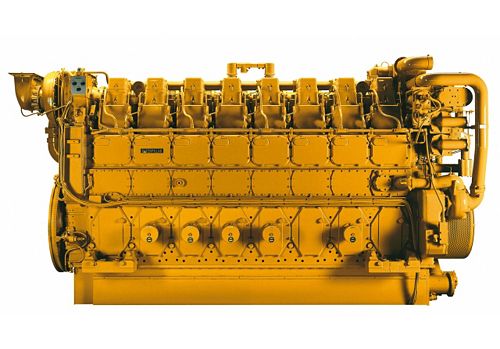

3606

Maximum Power
2481 HP / 1850 kW
Maximum Torque
13424 lb-ft @ 820 rpm / 18200 Nm @ 820 rpm
Minimum Power
1998 HP / 1490 kW

For your largest power needs in any environment, Cat® 3606 Industrial Diesel Engines offer the unsurpassed performance and durability your customers need to keep their industrial applications and operations running. They deliver high power output, proven reliability and excellent fuel efficiency. These engines maintain low operating costs to keep your customers profitable for years to come. Industries powered by 3606 engines include Construction, Forestry, General Industrial, Material Handling and Mining. These 3606 engines, with ratings: 1490-1850 bkW (1998-2481 bhp) @ 750-1000 rpm, are non-certified and available for global non-regulated areas.

Power Rating
Maximum Power 2481 HP / 1850 kW
Maximum Torque 13424 lb-ft @ 820 rpm / 18200 Nm @ 820 rpm
Rated Speed 750-1000 rpm
Minimum Power 1998 HP / 1490 kW
Emission Standards
Emissions Non-Certified
General
Engine Configuration Inline 6, 4-Stroke-Cycle Diesel
Bore 11 in / 280 mm
Stroke 11.8 in / 300 mm
Displacement 6764 in³ / 110.8 l
Compression Ratio 13:01
Aspiration Turbocharged Aftercooled
Rotation from Flywheel End Counterclockwise
Aftertreatment -
Engine Dimensions - Approximate
Length 157 in / 3988 mm
Width 69 in / 1748 mm
Height 103 in / 2626 mm
Weight - Net Dry - Basic Operating Engine Without Optional Attachments 34500 lb / 15680 kg

Standard Equipment

  • Air Inlet System
    • Aftercooler core, corrosion resistant coated (air side)
    • Air cleaner. Regular duty, dry, panel type with service indicators, turbocharger, jacket water aftercooled.
    • Turbocharger, rear mounted
    • Jacket water aftercooled
  • Control System
    • Governor, RH, 3161 with self contained synthetic oil sump
    • Air-fuel ratio control
    • Mechanical speed control, without torque control
    • Governor control
    • Positive locking
  • Cooling System
    • Thermostats and housing
    • Jacket water pump, centrifugal
  • Exhaust System
    • Exhaust manifold, dry
  • Flywheels and Flywheel Housing
    • SAE No. 00 flywheel
    • 183 flywheel teeth
    • SAE No. 00 flywheel housing
  • Fuel System
    • Fuel filter, with service indicators, cartridge type with RH service
    • Fuel transfer pump
  • Instrumentation
    • Instrument Panel, RH
    • Engine oil pressure gauge
    • Fuel pressure gauge
    • Oil filter differential gauge
    • Jacket water temperature gauge
    • Service meter, electric
    • Tachometer
  • Lube System
    • Crankcase breather, top mounted
    • Oil cooler
    • Oil filler
    • Oil dipstick
    • Oil pump
    • Oil filter, cartridge type with RH service
    • Shallow oil pan
  • Mounting System
    • Rails, mounting, engine length, 254 mm (10 in), industrial-type, C-channel.
  • Power Take Off
    • Accessory drive, upper RH
    • Front housing, single sided
  • Protection System
    • Junction box
    • Manual shutoff, RH
    • Safety shutoff protection, energized to shutdown
    • Low oil pressure, low idle 69 kPa (10 psi); high idle 207 kPa (30 psi)
    • Water temperature
    • Overspeed
    • 3161 governor solenoid energized to shutdown
  • Starting System
    • Starting switch
  • General
    • Vibration damper
    • Lifting eyes
    • Paint: Caterpillar yellow, with optional colors available at request
