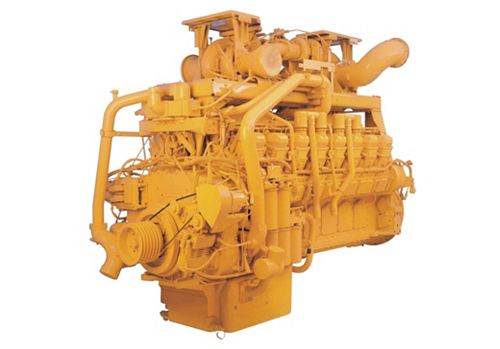

3516B
- Maximum Power
- 2200 hp / 1640 kW
- Minimum Power
- 2000 hp / 1492 kW
- Length
- 119 in / 3008 mm
For your largest power needs in any environment, Cat® 3516B Industrial Diesel Engines offer the unsurpassed performance and durability your customers need to keep their industrial applications and operations running. They deliver high power output, proven reliability and excellent fuel efficiency. These engines maintain low operating costs to keep your customers profitable for years to come. Industries and applications powered by 3516B engines include Bore/Drill Rigs, Chippers/Grinders, Construction, Cranes, Dredgers, Forestry, General Industrial, Material Handling, Mining, Mobile Earthmoving Equipment, Pumps, Shovels/Draglines, Surface Hauling Equipment and Trenchers. These 3516B engines, with ratings: 1492-1640 bkW (2000-2200 bhp) @ 1800 rpm, are non-certified. They are available for global non-regulated areas.
| Power Rating | |
|---|---|
| Maximum Power | 2200 hp / 1640 kW |
| Rated Speed | 1800 rpm |
| Minimum Power | 2000 hp / 1492 kW |
| Emission Standards | |
|---|---|
| Emissions | Non-Certified |
| General | |
|---|---|
| Engine Configuration | V-16, 4-Stroke-Cycle Diesel |
| Bore | 6.7 in / 170 mm |
| Stroke | 7.5 in / 190 mm |
| Displacement | 4210 in³ / 69 l |
| Aspiration | Turbocharged Aftercooled |
| Rotation from Flywheel End | Counterclockwise |
| Aftertreatment | - |
| Engine Dimensions - Approximate | |
|---|---|
| Length | 119 in / 3008 mm |
| Width | 57 in / 1443 mm |
| Height | 78 in / 1980 mm |
| Weight - Net Dry - Basic Operating Engine Without Optional Attachments | 16500 lb / 7484 kg |
