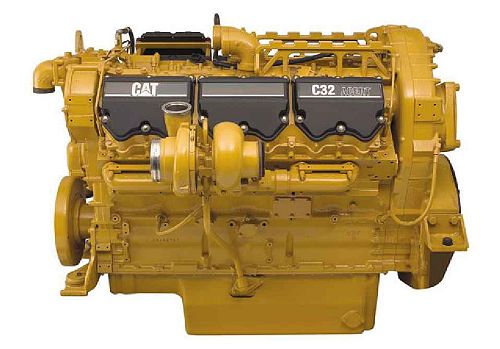

C32

Maximum Power
1350 HP / 1007 kW
Maximum Torque
4548 lb-ft @ 1400 rpm / 6166 Nm @ 1400 rpm
Minimum Power
950 HP / 708 kW

No matter where they operate and no matter what the application, Cat® C32 Industrial Diesel Engines will deliver durable, reliable power that will keep your customers productive while lowering their operating costs to keep them profitable. Today's Cat® engines are the finest ever produced by Caterpillar - with a legacy of power and rugged reliability driven by the demands of performance. Industries and applications powered by these high power engines include Bore/Drill Rigs, Chippers/Grinders, Construction, Cranes, Dredgers, Forestry, Hydraulic Power Units, General Industrial, Irrigation Equipment, Material Handling, Mobile Earthmoving Equipment, Paving Equipment, Pumps, Shovels/Draglines, Surface Hauling Equipment and Trenchers. These C32 engines, with ratings: 708-1007 bkW (950-1350 bhp) @ 1800-2100 rpm, meet U.S. EPA Tier 2 equivalent emission standards. They are available using U.S. EPA Flexibility, and for other regulated and non-regulated areas.

Power Rating
Maximum Power 1350 HP / 1007 kW
Maximum Torque 4548 lb-ft @ 1400 rpm / 6166 Nm @ 1400 rpm
Rated Speed 1800-2100 rpm
Minimum Power 950 HP / 708 kW
Emission Standards
Emissions U.S. EPA Tier 2 Equivalent
General
Engine Configuration V-12, 4-Stroke-Cycle Diesel
Bore 5.7 in / 145 mm
Stroke 6.4 in / 162 mm
Displacement 1958.9 in³ / 32.1 l
Compression Ratio 16.5:1
Aspiration Turbocharged Aftercooled (TA)
Combustion System Direct Injection
Rotation from Flywheel End Counterclockwise
Aftertreatment -
Engine Dimensions - Approximate
Length 75.5 in / 1917 mm
Width 58.2 in / 1479 mm
Height 51.9 in / 1319 mm
Weight - Net Dry - Basic Operating Engine Without Optional Attachments 6495 lb / 2946 kg

Standard Equipment

  • Air Inlet System
    • Twin Turbocharged Aftercooled
    • Air-to-Air Aftercooled
  • Control System
    • Electronic governing, PTO speed control
    • Programmable ratings
    • Automatic altitude compensation
    • Power compensation for fuel temperature
    • Programmable low and high idle and total engine limit
    • Electronic diagnostics and fault logging
    • Engine monitoring system SAE J1939 broadcast and control
    • ADEM™ A4 Electronic Control Unit (ECU)
  • Cooling System
    • Thermostats and housing, vertical outlet
    • Jacket water pump, centrifugal
    • Water pump, inlet
  • Exhaust System
    • Exhaust manifold, dry
    • Optional exhaust outlet
  • Flywheels and Flywheel Housing
    • SAE No. 1 flywheel housing
  • Fuel System
    • MEUI injection
    • Fuel filter, secondary (2 micron)
    • ACERT™ Technology
    • Fuel transfer pump
    • Fuel priming pump
  • Lube System
    • Crankcase breather
    • Oil cooler
    • Oil filler
    • Lube oil filter
    • Front sump oil pan
    • Oil dipstick
    • Gear driven oil pump
  • General
    • Vibration damper
    • Lifting eyes
    • Cold start capability to -20° C (-4° F)
    • Paint: Caterpillar yellow, with optional colors available at request
