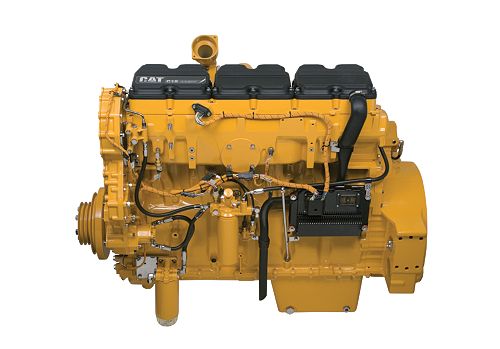

C18
- Maximum Power
- 800 hp / 597 kW
- Maximum Torque
- 2696 lb-ft @ 1400 rpm / 3655 Nm @ 1400 rpm
- Minimum Power
- 575 hp / 429 kW
On construction sites and mining operations, in agriculture and forestry, and in a wide range of industries, Cat?? C18 Industrial Diesel Engines deliver the power, performance and durability to take on the biggest challenges. More importantly, they're backed by the world-class Cat dealer network ready to service and support every Cat?? industrial engine.
| Power Rating | |
|---|---|
| Maximum Power | 800 hp / 597 kW |
| Maximum Torque | 2696 lb-ft @ 1400 rpm / 3655 Nm @ 1400 rpm |
| Rated Speed | 1800-2100 rpm |
| Minimum Power | 575 hp / 429 kW |
| Emission Standards | |
|---|---|
| Emissions | China Nonroad III, U.S. EPA Tier 3 equivalent or U.S. EPA Tier 2 equivalent, EU Stage IIIA equivalent, or Non-certified |
| General | |
|---|---|
| Engine Configuration | Inline 6, 4-Stroke-Cycle Diesel |
| Bore | 5.7 in / 145 mm |
| Stroke | 7.2 in / 183 mm |
| Displacement | 1104.5 in³ / 18.1 l |
| Compression Ratio | 16.3:1 |
| Aspiration | Turbocharged Aftercooled (TA) |
| Combustion System | Direct Injection |
| Rotation from Flywheel End | Counterclockwise |
| Aftertreatment | - |
| Engine Dimensions - Approximate | |
|---|---|
| Length | 55.7 in / 1414 mm |
| Width | 38.3 in / 974 mm |
| Height | 49.5 in / 1257 mm |
| Weight - Net Dry - Basic Operating Engine Without Optional Attachments | 3688 lb / 1673 kg |
