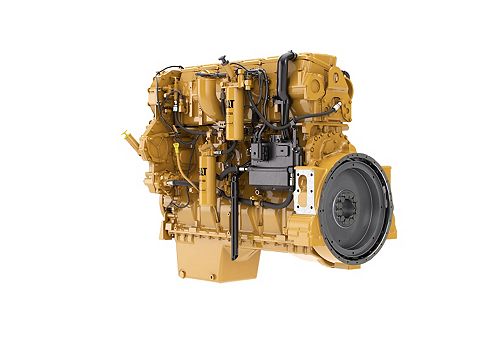

C15

Maximum Power
595 hp / 444 kW
Maximum Torque
2004 lb-ft @ 1400 rpm / 2717 Nm @ 1400 rpm
Minimum Power
440 hp / 328 kW

On construction sites and mining operations, in agriculture and forestry, and in a wide range of industries, Cat?? C15 Industrial Diesel Engines deliver the power, performance and durability to take on the biggest challenges. More importantly, they're backed by the world-class Cat dealer network ready to service and support every Cat?? industrial engine. Industries and applications powered by C15 engines include Agriculture, Ag Tractors, Aircraft Ground Support, Bore/Drill Rigs, Chippers/Grinders, Combines/Harvesters, Compactors/Rollers, Compressors, Construction, Cranes, Crushers, Dredgers, Forestry, General Industrial, Hydraulic Power Units, Irrigation Equipment, Loaders/Forwarders, Material Handling, Mining, Mobile Earthmoving Equipment, Paving Equipment, Pumps, Shovels/Draglines, Surface Hauling Equipment and Trenchers. C15 engines, with ratings: 328-444 bkW (440-595 bhp) @ 1800-2100 rpm, meet China Stage II, U.S. EPA Tier 3 equivalent, EU Stage IIIA equivalent emission standards. They are available using U.S. EPA and EU Flexibility, and for other regulated and non-regulated areas.

Power Rating
Maximum Power 595 hp / 444 kW
Maximum Torque 2004 lb-ft @ 1400 rpm / 2717 Nm @ 1400 rpm
Rated Speed 1800-2100 rpm
Minimum Power 440 hp / 328 kW
Emission Standards
Emissions China Nonroad III, U.S. EPA Tier 3 Equivalent, EU Stage IIIA Equivalent
General
Engine Configuration Inline 6, 4-Stroke-Cycle Diesel
Bore 5.4 in / 137 mm
Stroke 6.8 in / 171 mm
Displacement 927.6 in³ / 15.2 l
Compression Ratio 18.0:1
Aspiration Turbocharged Aftercooled (TA)
Combustion System Direct Injection
Rotation from Flywheel End Counterclockwise
Aftertreatment -
Engine Dimensions - Approximate
Length 54.2 in / 1377 mm
Width 36.2 in / 919 mm
Height 48.3 in / 1226 mm
Weight - Net Dry - Basic Operating Engine Without Optional Attachments 3239 lb / 1469 kg

Standard Equipment

  • Air Inlet System
    • Turbocharged
    • Air-to-Air Aftercooled
  • Control System
    • Electronic governing, PTO speed control
    • Programmable ratings
    • Automatic altitude compensation
    • Power compensation for fuel temperature
    • Programmable low and high idle and total engine limit
    • Electronic diagnostics and fault logging
    • Engine monitoring system SAE J1939 broadcast and control
    • ADEM™ A4 Electronic Control Unit (ECU)
  • Cooling System
    • Thermostats and housing, vertical outlet
    • Jacket water pump, centrifugal
    • Water pump, inlet
  • Exhaust System
    • Exhaust manifold, dry
    • Optional exhaust outlet
  • Flywheels and Flywheel Housing
    • SAE No. 1 flywheel housing
  • Fuel System
    • MEUI injection
    • Fuel filter, secondary (2 micron)
    • Fuel filter, tertiary (2 micron)
    • ACERT™ Technology
    • Fuel transfer pump
    • Fuel priming pump
  • Lube System
    • Crankcase breather
    • Oil cooler
    • Oil filler
    • Lube oil filter
    • Front sump oil pan
    • Oil dipstick
    • Gear driven oil pump
  • General
    • Vibration damper
    • Lifting eyes
    • Cold start capability to -20° C (-4° F)
    • Paint: Caterpillar yellow, with optional colors available at request
