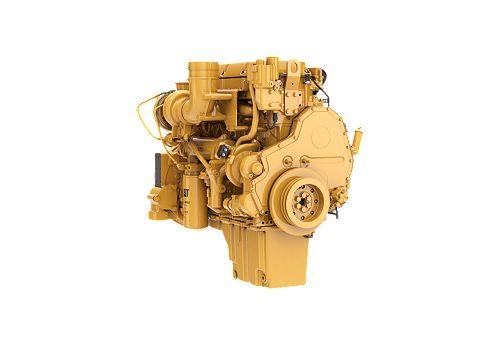

C11

Emission Standards
Emissions	China Nonroad Stage III, Brazil MAR-1, UN ECE R96 Stage IIIA, U.S. EPA Tier 3

General
Engine Configuration	Inline 6, 4-Stroke-Cycle Diesel
Bore	5.1 in / 130 mm
Stroke	5.5 in / 140 mm
Displacement	677.4 in³ / 11.1 l
Compression Ratio	17.2:1
Aspiration	Turbocharged Aftercooled (TA)
Combustion System	Direct Injection
Rotation from Flywheel End	Counterclockwise
Aftertreatment	-

Engine Dimensions - Approximate
Length	47 in / 1203 mm
Width	42 in / 1054 mm
Height	47 in / 1186 mm
Weight - Net Dry - Basic Operating Engine Without Optional Attachments	2050 lb / 930 kg

Air Inlet System
- Turbocharged
- Air-to-Air Aftercooled
Control System
- Electronic governing, PTO speed control
- Programmable ratings
- Automatic altitude compensation
- Power compensation for fuel temperature
- Programmable low and high idle and total engine limit
- Electronic diagnostics and fault logging
- Engine monitoring system SAE J1939 broadcast and control
- ADEM™ A4 Electronic Control Unit (ECU)
Cooling System
- Thermostats and housing, vertical outlet
- Jacket water pump, centrifugal
- Water pump, inlet
Exhaust System
- Exhaust manifold, dry
- Optional exhaust outlet
Flywheels and Flywheel Housing
- SAE No. 1 flywheel housing
Fuel System
- MEUI injection
- Fuel filter, secondary (2 micron)
- ACERT™ Technology
- Fuel transfer pump
- Fuel priming pump
Lube System
- Crankcase breather
- Oil cooler
- Oil filler
- Lube oil filter
- Front sump oil pan
- Oil dipstick
- Gear driven oil pump
General
- Vibration damper
- Lifting eyes
- Cold start capability to -20° C (-4° F)
- Paint: Caterpillar yellow, with optional colors available at request
