C13

Maximum Power
520 HP / 388 kW
Minimum Power
385 HP / 287 kW
Bore
5.1 in / 130 mm

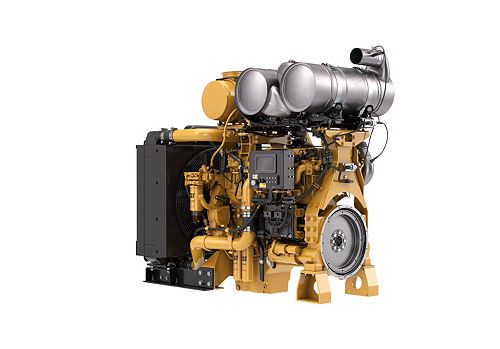

The Cat® C13 Industrial Power Unit is offered in ratings ranging from 287-388 bkW (385-520 bhp) @ 1800-2100 rpm. Conveniently pre-configured for a wide range of applications, the Cat® Industrial Power Unit is a complete power package containing a radiator, flywheel, alternator and alternator wiring completely pre-assembled for fast, straightforward installation in a number of OEM, customer and packager applications. These fuel efficient units are ready made for irrigation, industrial, mining and other pump applications.

Loan Calculator Credit Application
Build & Quote
alt 1
C13 IPU Spec Sheet
Power Rating
Maximum Power 520 HP / 388 kW
Rated Speed 1800-2100 rpm
Minimum Power 385 HP / 287 kW
Emission Standards
Emissions U.S. EPA Tier 4 Final, EU Stage V, Japan 2014 and Korea Tier 4 Final emissions standards
General
Engine Configuration Inline 6, 4-Stroke-Cycle Diesel
Bore 5.1 in / 130 mm
Stroke 6.2 in / 157 mm
Displacement 762.8 in³ / 12.5 l
Compression Ratio 17.0:1
Aspiration Turbocharged Aftercooled (TA)
Rotation from Flywheel End Counterclockwise
Aftertreatment DOC+DPF+SCR
Power Unit Dimensions
Length 83.5 in / 2122 mm
Width 49 in / 1247 mm
Height 82 in / 2082 mm
Weight 5080 lb / 2304 kg
PETU Dimensions - Tier 4 Final Only
Length 33.6 in / 854 mm
Width 11.3 in / 287 mm
Height 21.7 in / 551 mm
Weight 42.8 lb / 19.4 kg
Volume Capacity 51.1 qt (US) / 48.4 l

Standard Equipment

  • Air Inlet System
    • Turbocharged
    • Air-to-Air Aftercooled
    • Mid-mount turbocharged system with front and rear exhaust configurations (Tier 4 Final, Stage V)
  • Control System
    • Electronic control system
    • Over-foam wiring harness
    • Automatic altitude compensation
    • Power compensated for fuel temperature
    • Configurable software features
    • Engine monitoring system SAE J1939 broadcast and control
    • Integrated Electronic Control Unit (ECU)
    • Remote fan control
  • Cooling System
    • Vertical or RH thermostat outlet
    • Centrifugal water pump
    • Guidance on cooling system design available through your dealer to ensure equipment reliability
  • Flywheels and Flywheel Housing
    • SAE No. 1 flywheel housing
    • Available SAE No. 1 power take off with optional SAE A, SAE B or SAE C power take off drives. Engine power can also be taken from the front of the engine with optional attachments. (Tier 4 Final, Stage V).
  • Fuel System
    • MEUI injection
    • Primary fuel filter
    • Secondary fuel filters
    • Fuel transfer pump
    • Electronic fuel priming
  • Lube System
    • Open crankcase ventilation system
    • Oil cooler
    • Oil filler
    • Lube oil filter
    • Oil dipstick
    • Gear driven oil pump
    • Choice of front, rear or center sumps
    • Open crankcase ventilation system with fumes disposal (optional OCV filter system) (Tier 4 Final, Stage V)
  • Power Take Off (PTO)
    • SAE A, SAE B or SAE C power take off (PTO) drives. Engine power can also be taken from the front of the engine on some applications.
  • General
    • Paint: Cat yellow
  • U.S. EPA Tier 4 Final, EU Stage V Aftertreatment/ Clean Emissions Control Equipment
    • Cat Regeneration System
    • Clean Emissions Module (CEM), consisting of Diesel Particulate Filter (DPF) and Diesel Oxidation Catalyst (DOC)
    • Aftertreatment Electronic Control Unit (ECU)
    • NOx Reduction System (NRS)
    • Pump Electronic Control Unit (PETU)
    • Selective Catalytic Reduction (SCR)
    • Available in 12V or 24V systems
