C4.4

Maximum Power: 188 hp / 140 kW
Maximum Torque: 601 lb-ft @ 1400 rpm / 815 Nm @ 1400 rpm
Minimum Power: 137 hp / 102 kW

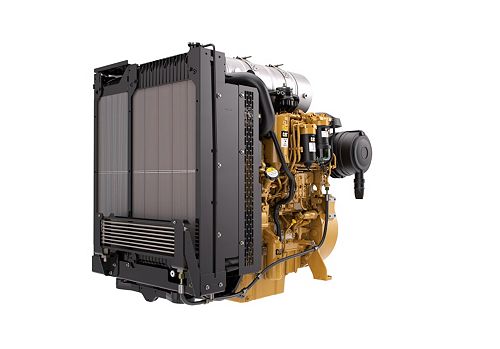

The C4.4 IPU engine is a common rail direct injection engine with either a single turbo or twin turbo chargecooled air system. It meets U.S. EPA Tier 4 Final, EU Stage V and Japan 2014 (Tier 4 Final) emission standards. For ease of installation, the IPU provides full aftertreatment mounting, an integrated cooling system and inlet air filter mounted to the IPU.

Loan Calculator Credit Application

Build & Quote

C4.4 IPU Spec Sheet

Specifications
Equipment

Power Rating
Maximum Power	188 hp / 140 kW
Maximum Torque	601 lb-ft @ 1400 rpm / 815 Nm @ 1400 rpm
Rated Speed	2000 - 2200 rpm
Minimum Power	137 hp / 102 kW

Emission Standards
Emissions	EU Stage V, U.S. EPA Tier 4 Final, Japan 2014 (Tier 4 Final)

General
Engine Configuration	Inline 4, 4-Stroke-Cycle Diesel
Bore	4.1 in / 105 mm
Stroke	5 in / 127 mm
Displacement	268.5 in³ / 4.4 l
Compression Ratio	16.0:2
Aspiration	Turbocharged Aftercooled (TA) or Twin Turbocharged Aftercooled (TTA)
Rotation from Flywheel End	Counterclockwise
Aftertreatment	DOC+DPF+SCR

Power Unit Dimensions
Length	60.3 in / 1532 mm
Width	34.2 in / 869 mm
Height	53.7 in / 1364 mm
Weight	1559 lb / 707 kg

Standard Equipment

Air Inlet System
- Standard air cleaners
Control System
- Full electronic control system, all connectors and wiring looms waterproof and designed to withstand harsh off-highway environments
- Flexible and configurable software features and well-supported SAE J1939 CAN bus enables highly integrated machines
Cooling System
- Top tank temperature 108° C (226° F) as standard to minimize cooling pack size
- 50:50 water glycol mix
- Guidance on cooling system design available through your dealer to ensure equipment reliability
Flywheels and Flywheel Housing
- Wide choice of drivetrain interfaces, including SAE No. 2 and SAE No. 3 configurations
Fuel System
- Electronic high pressure common rail
- Innovative filter design to ensure maximum protection of the engine
Lube System
- Wide choice of sumps for different applications
Power Take Off
- SAE A and SAE B flanges on left-hand side. Additional SAE A flange available on left-hand side. Engine power can also be taken from the front of the engine on some applications. Factory fitted compressors are also available.
General
- Available with or without a balancer
- Paint: Caterpillar yellow, with optional colors available at request
U.S. EPA TIER 4 FINAL, EU STAGE V AFTERTREATMENT, JAPAN 2014 (TIER 4 FINAL) / CLEAN EMISSIONS CONTROL EQUIPMENT
- Diesel Oxidation Catalyst (DOC) / Diesel Particulate Filter (DPF) / Selective Catalytic Reduction (SCR)
- No ash service requirement
- Passive regeneration
