C1.5
- Maximum Power
- 40.2 hp / 30 kW
- Maximum Torque
- 83 lb-ft @ 1800 rpm / 112 Nm @ 1800 rpm
- Minimum Power
- 27.8 hp / 20.7 kW

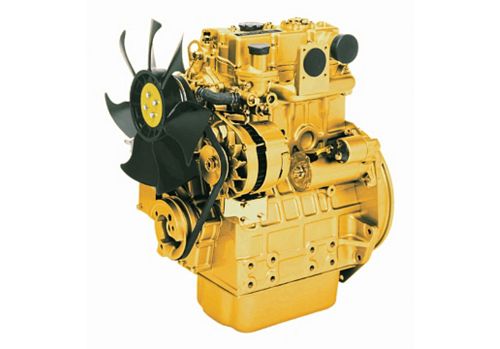

Cat?? C1.5 Industrial Diesel Engines deliver impressive performance throughout a wide speed range with exceptional power density. Their ultra-compact package size and extensive choice of options ensures these engines are ideal for a wide range of small, off road applications. Single-side servicing improves ease of maintenance and lowers overall owner operating costs. Applications powered by C1.5 engines include: Agriculture Tractors, Combines and Harvesters, Aircraft Ground Support, Bore/Drill Rigs, Chippers, Grinders, Compactors, Rollers, Compressors, Construction, Irrigation, Pumps, Turf, Landscaping, Mobile Earthmoving, Paving, Trenchers, Underground Mining, and Material Handling. C1.5 engines, with ratings: 20.9-30 bkW (28-40.2 bhp) @ 2200-3000 rpm, meet EPA Tier 4 Interim equivalent emission standards. They are available using U.S. EPA Flexibility, and for other regulated and non-regulated areas.
| Power Rating | |
|---|---|
| Maximum Power | 40.2 hp / 30 kW |
| Maximum Torque | 83 lb-ft @ 1800 rpm / 112 Nm @ 1800 rpm |
| Rated Speed | 2200-3000 rpm |
| Minimum Power | 27.8 hp / 20.7 kW |
| Emission Standards | |
|---|---|
| Emissions | U.S. EPA Tier 4 Interim Equivalent |
| General | |
|---|---|
| Engine Configuration | Inline 3, 4-Stroke-Cycle Diesel |
| Bore | 3.3 in / 84 mm |
| Stroke | 3.5 in / 90 mm |
| Displacement | 91 in³ / 1.496 l |
| Compression Ratio | 22.5:1 |
| Aspiration | Naturally Aspirated (NA) or Turbocharged (T) |
| Combustion System | Indirect Injection |
| Rotation from Flywheel End | Counterclockwise |
| Aftertreatment | - |
| Engine Dimensions - Approximate | |
|---|---|
| Length | 22.5 in / 572 mm |
| Width | 20.3 in / 512 mm |
| Height | 25.3 in / 643 mm |
| Weight - Net Dry - Basic Operating Engine Without Optional Attachments | 345 lb / 157 kg |
