C18
- Maximum Power
- 800 hp / 597 kW
- Minimum Power
- 600 hp / 447 kW
- Bore
- 5.7 in / 145 mm

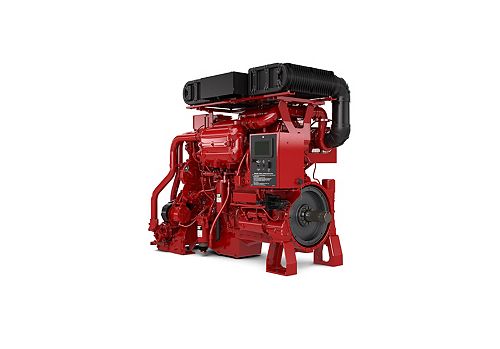

Cat?? C18 Fire Pump Engines, with ratings: 447-597 kW (600-800 hp)@ 1750-2100 rpm, meet U.S. EPA Tier 3 or U.S. EPA Tier 2 emission standards for stationary emergency fire pump engines. Rating: 522 kW (700 hp) @ 1500 rpm is Non-certified. All ratings are FM Approved and UL Listed. Starting on demand is a must for a fire pump engine - always. Cat?? fire pump engines have a reputation for reliable starts and long efficient service. The Cat line of fire engine pumps covers a wide range of installations. At 447-597 kW (600-800 hp) the C18 is the newest addition to the Cat fire pump engine line and continues the strong legacy of dependable starts and long, durable life.
| Power Rating | |
|---|---|
| Maximum Power | 800 hp / 597 kW |
| Rated Speed | 1500-2100 rpm |
| Minimum Power | 600 hp / 447 kW |
| Emission Standards | |
|---|---|
| Emissions | U.S. EPA Tier 3, Tier 2 or Non-certified emission standards for stationary emergency fire pump engines. FM Approved, UL Listed |
| General | |
|---|---|
| Engine Configuration | Inline 6, 4-Stroke-Cycle Diesel |
| Bore | 5.7 in / 145 mm |
| Stroke | 7.2 in / 183 mm |
| Displacement | 1104.5 in³ / 18.1 l |
| Compression Ratio | 16.3:1 |
| Aspiration | Turbocharged Aftercooled (TA) |
| Rotation from Flywheel End | Counterclockwise |
| Aftertreatment | - |
| Engine Dimensions - Approximate | |
|---|---|
| Length | 74.7 in / 1889 mm |
| Width | 42.6 in / 1082 mm |
| Height | 54.3 in / 1380 mm |
| Weight - Net Dry - Basic Operating Engine Without Optional Attachments | 4306 lb / 1953 kg |
