3508
- Maximum Power
- 1000 hp / 746 kW
- Maximum Torque
- 3144 lb-ft @ 1450 rpm / 4263 Nm @ 1450 rpm
- Minimum Power
- 680 hp / 507 kW

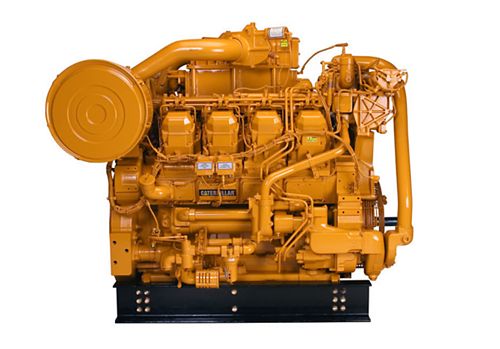

For your largest power needs in any environment, Cat?? 3508 Industrial Diesel Engines offer the unsurpassed performance and durability your customers need to keep their industrial applications and operations running. They deliver high power output, proven reliability and excellent fuel efficiency. These engines maintain low operating costs to keep your customers profitable for years to come. Industries and applications powered by 3508 engines include: Bore/Drill Rigs, Chippers/Grinders, Construction, Cranes, Dredgers, Forestry, General Industrial, Material Handling, Mining, Mobile Earthmoving Equipment, Pumps, Shovels/Draglines, Surface Hauling Equipment and Trenchers. 3508 engines, with ratings: 507-746 bkW (680-1000 bhp) @ 1200-1800 rpm, are non-certified. They are available for global non-regulated areas.
| Power Rating | |
|---|---|
| Maximum Power | 1000 hp / 746 kW |
| Maximum Torque | 3144 lb-ft @ 1450 rpm / 4263 Nm @ 1450 rpm |
| Rated Speed | 1200-1800 rpm |
| Minimum Power | 680 hp / 507 kW |
| Emission Standards | |
|---|---|
| Emissions | Non-Certified |
| General | |
|---|---|
| Engine Configuration | V-8, 4-Stroke-Cycle Diesel |
| Bore | 6.7 in / 170 mm |
| Stroke | 7.5 in / 190 mm |
| Displacement | 2107 in³ / 34.5 l |
| Compression Ratio | 13.0:1 |
| Aspiration | Turbocharged Aftercooled |
| Rotation from Flywheel End | Counterclockwise |
| Aftertreatment | - |
| Engine Dimensions - Approximate | |
|---|---|
| Length | 84 in / 2136 mm |
| Width | 67 in / 1703 mm |
| Height | 68 in / 1720 mm |
| Weight - Net Dry - Basic Operating Engine Without Optional Attachments | 9500 lb / 4309 kg |
