C1.7
- Maximum Power
- 23.8 hp / 17.8 kW
- Maximum Torque
- 92 lb-ft @ 1800 rpm / 125 Nm @ 1800 rpm
- Minimum Power
- 23.8 hp / 17.8 kW

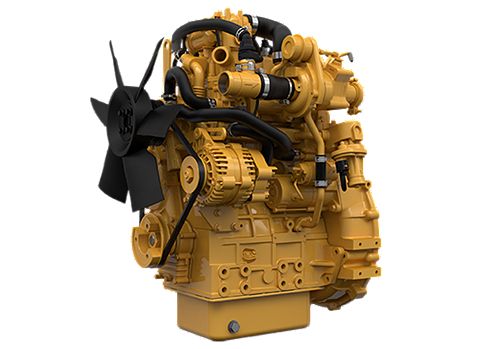

Cat® C1.7 Industrial Diesel deliver impressive performance throughout a wide speed range with exceptional power density. Their ultra-compact package size and extensive choice of options ensures these engines are ideal for a wide range of small, off road applications. Single-side servicing improves ease of maintenance and lowers overall owner operating costs. Industries and applications powered by C1.7 engines include: Aircraft Ground Support, Bore/Drill Rigs, Chippers/Grinders, Compactors/Rollers, Construction, Forestry, General Industrial, Material Handling, Mining, Mobile Earthmoving Equipment, Mobile Light Towers, Pumps, Trenchers, Turf and Landscaping and Underground Mining Equipment. C1.7 engines, with ratings: 23.6 & 26.1 bkW (31.6 & 35 bhp) @ 2400 & 2600 rpm, meet U.S. EPA Tier 4 Final emission standards. They are available using U.S. EPA Flexibility, and for other regulated and non-regulated areas.
| Power Rating | |
|---|---|
| Maximum Power | 23.8 hp / 17.8 kW |
| Maximum Torque | 92 lb-ft @ 1800 rpm / 125 Nm @ 1800 rpm |
| Rated Speed | 2200 rpm |
| Minimum Power | 23.8 hp / 17.8 kW |
| Emission Standards | |
|---|---|
| Emissions | U.S. EPA Tier 4 Final |
| General | |
|---|---|
| Engine Configuration | In-Line 3 |
| Bore | 3.3 in / 84 mm |
| Stroke | 3.9 in / 100 mm |
| Displacement | 103.7 in³ / 1.7 l |
| Compression Ratio | 23.0:1 |
| Aspiration | Naturally Aspirated (NA)/Turbocharged (T) |
| Combustion System | Indirect Injection |
| Rotation from Flywheel End | Counterclockwise |
| Aftertreatment | - |
| Total Lubricating Oil Capacity | 1.58 gal (US) / 6 l |
| Engine Dimensions - Approximate | |
|---|---|
| Length | 22.5 in / 572 mm |
| Width | 19.7 in / 502 mm |
| Height | 25.3 in / 643 mm |
| Weight - Net Dry - Basic Operating Engine Without Optional Attachments | 368 lb / 167 kg |
| Aftertreatment Dimensions | |
|---|---|
| Length | 22.5 in / 572 mm |
| Weight | 12.8 lb / 5.8 kg |
| Aftertreatment Dimensions* | |
|---|---|
| Diameter | 6.1 in / 155 mm |
