C1.5
- Maximum Power
- 24.6 hp / 18.4 kW
- Maximum Torque
- 63.4 lb-ft @ 1800 rpm / 86 Nm @ 1800 rpm
- Minimum Power
- 24.6 hp / 18.4 kW

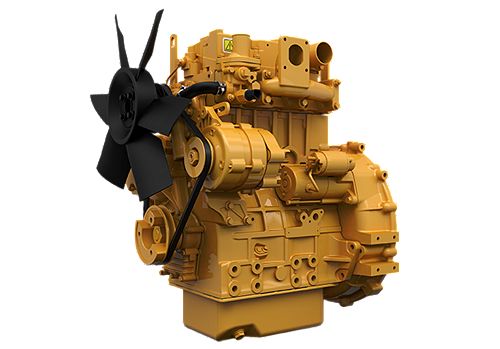

Cat?? C1.5 Industrial Diesel Engines deliver impressive performance throughout a wide speed range with exceptional power density. Their ultra-compact package size and extensive choice of options ensures these engines are ideal for a wide range of small, off road applications. Single-side servicing improves ease of maintenance and lowers overall owner operating costs.
| Power Rating | |
|---|---|
| Maximum Power | 24.6 hp / 18.4 kW |
| Maximum Torque | 63.4 lb-ft @ 1800 rpm / 86 Nm @ 1800 rpm |
| Rated Speed | 2200/2800 rpm |
| Minimum Power | 24.6 hp / 18.4 kW |
| Emission Standards | |
|---|---|
| Emissions | U.S. EPA Tier 4 Final |
| General | |
|---|---|
| Engine Configuration | In-Line 3 |
| Bore | 3.3 in / 84 mm |
| Stroke | 3.5 in / 90 mm |
| Displacement | 91 in³ / 1.496 l |
| Compression Ratio | 22.5:1 |
| Aspiration | Naturally Aspirated (NA) |
| Combustion System | Indirect Injection |
| Rotation from Flywheel End | Counterclockwise |
| Aftertreatment | - |
| Engine Dimensions - Approximate | |
|---|---|
| Length | 22.5 in / 572 mm |
| Width | 17.9 in / 453 mm |
| Height | 25.3 in / 643 mm |
| Weight - Net Dry - Basic Operating Engine Without Optional Attachments | 327 lb / 148 kg |
