C1.1
- Maximum Power
- 23.8 hp / 17.8 kW
- Maximum Torque
- 60.7 lb-ft @ 1600 rpm / 82.3 Nm @ 1600 rpm
- Minimum Power
- 23.8 hp / 17.8 kW

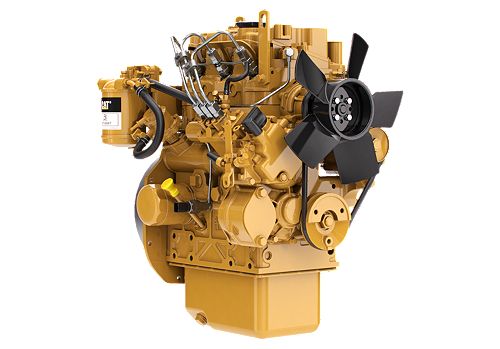

Cat® C1.1 Industrial Diesel Engines deliver impressive performance throughout a wide speed range with exceptional power density. Their ultra-compact package size and extensive choice of options ensures these engines are ideal for a wide range of small, off road applications. Single-side servicing improves ease of maintenance and lowers overall owner operating costs.
| Power Rating | |
|---|---|
| Maximum Power | 23.8 hp / 17.8 kW |
| Maximum Torque | 60.7 lb-ft @ 1600 rpm / 82.3 Nm @ 1600 rpm |
| Rated Speed | 2800 rpm |
| Minimum Power | 23.8 hp / 17.8 kW |
| Emission Standards | |
|---|---|
| Emissions | U.S. EPA Tier 4 Final |
| General | |
|---|---|
| Engine Configuration | In-Line 3 |
| Bore | 3 in / 77 mm |
| Stroke | 3.2 in / 81 mm |
| Displacement | 69 in³ / 1.13 l |
| Compression Ratio | 22.1:1 |
| Aspiration | Naturally Aspirated (NA)/Turbocharged (T) |
| Combustion System | Indirect Injection |
| Rotation from Flywheel End | Counterclockwise |
| Aftertreatment | - |
| Total Lubricating Oil Capacity | 1.16 gal (US) / 4.4 l |
| Engine Dimensions - Approximate | |
|---|---|
| Length | 19.6 in / 500 mm |
| Width | 20.1 in / 513 mm |
| Height | 23.1 in / 588 mm |
| Weight - Net Dry - Basic Operating Engine Without Optional Attachments | 238 lb / 108 kg |
