C0.7
- Maximum Power
- 17.8 hp / 13.3 kW
- Maximum Torque
- 32 lb-ft @ 2400 rpm / 44 Nm @ 2400 rpm
- Minimum Power
- 11.8 hp / 8.8 kW

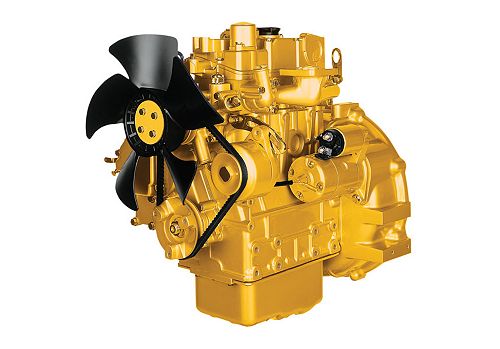

Cat® C0.7 Industrial Diesel Engines deliver impressive performance throughout a wide speed range with exceptional power density. Their ultra-compact package size and extensive choice of options ensures these engines are ideal for a wide range of small, off road applications. Single-side servicing improves ease of maintenance and lowers overall owner operating costs.
| Power Rating | |
|---|---|
| Maximum Power | 17.8 hp / 13.3 kW |
| Maximum Torque | 32 lb-ft @ 2400 rpm / 44 Nm @ 2400 rpm |
| Rated Speed | 2200-3600 rpm |
| Minimum Power | 11.8 hp / 8.8 kW |
| Emission Standards | |
|---|---|
| Emissions | U.S. EPA Tier 4 Final, EU Stage V |
| General | |
|---|---|
| Engine Configuration | In-Line 3 |
| Bore | 2.6 in / 67 mm |
| Stroke | 2.8 in / 72 mm |
| Displacement | 46.5 in³ / 0.76 l |
| Compression Ratio | 23.5:1 |
| Aspiration | Naturally Aspirated (NA) |
| Combustion System | Indirect Injection |
| Rotation from Flywheel End | Counterclockwise |
| Engine Dimensions - Approximate | |
|---|---|
| Length | 18.9 in / 480 mm |
| Width | 14.6 in / 371 mm |
| Height | 20.8 in / 528 mm |
| Weight - Net Dry - Basic Operating Engine Without Optional Attachments | 156.6 lb / 71 kg |
