C0.5
- Maximum Power
- 13.7 hp / 10.2 kW
- Maximum Torque
- 22 lb-ft @ 2600 rpm / 29.7 Nm @ 2600 rpm
- Minimum Power
- 11 hp / 8.2 kW

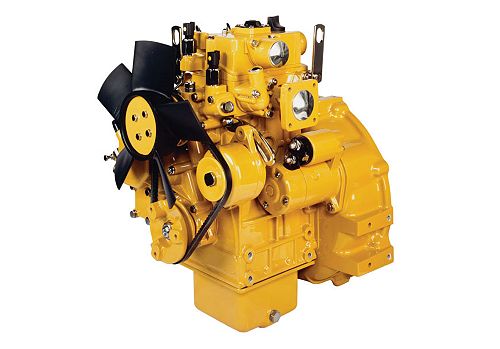

Cat?? C0.5 Industrial Diesel Engines engines deliver impressive performance throughout a wide speed range with exceptional power density. Their ultra-compact package size and extensive choice of options ensures these engines are ideal for a wide range of small, off road applications. Single-side servicing improves ease of maintenance and lowers overall owner operating costs.
| Power Rating | |
|---|---|
| Maximum Power | 13.7 hp / 10.2 kW |
| Maximum Torque | 22 lb-ft @ 2600 rpm / 29.7 Nm @ 2600 rpm |
| Rated Speed | 2000-3600 rpm |
| Minimum Power | 11 hp / 8.2 kW |
| Emission Standards | |
|---|---|
| Emissions | U.S. EPA Tier 4 Final, EU Stage V |
| General | |
|---|---|
| Engine Configuration | In-Line 2 |
| Bore | 2.6 in / 67 mm |
| Stroke | 2.8 in / 72 mm |
| Displacement | 31 in³ / 0.5 l |
| Compression Ratio | 23.5:1 |
| Aspiration | Naturally Aspirated (NA) |
| Combustion System | Indirect Injection |
| Rotation from Flywheel End | Counterclockwise |
| Engine Dimensions - Approximate | |
|---|---|
| Length | 16 in / 407 mm |
| Width | 14.6 in / 371 mm |
| Height | 20.6 in / 523 mm |
| Weight - Net Dry - Basic Operating Engine Without Optional Attachments | 126 lb / 57 kg |
