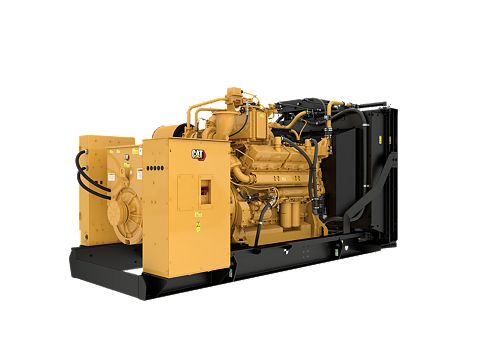

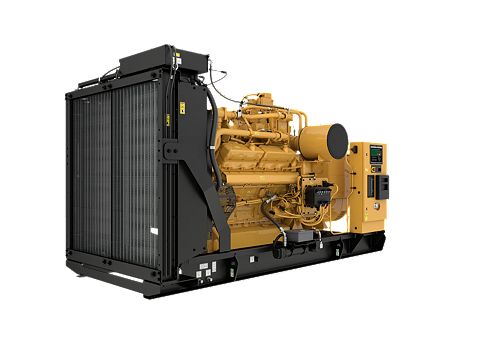

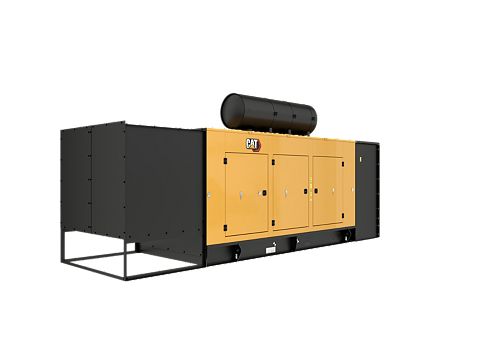

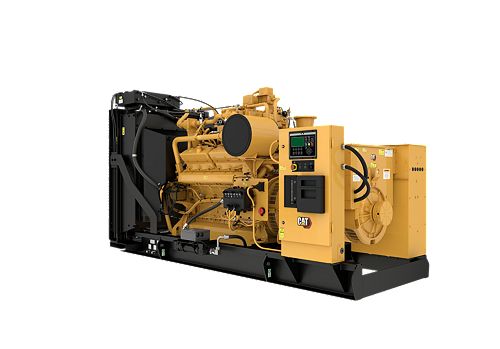

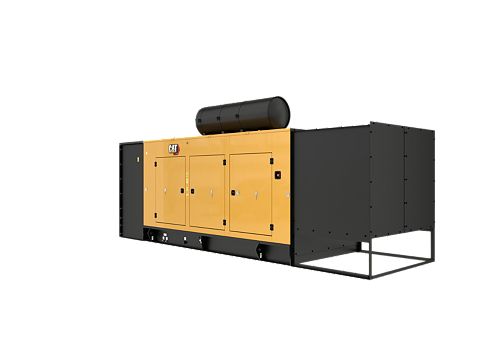

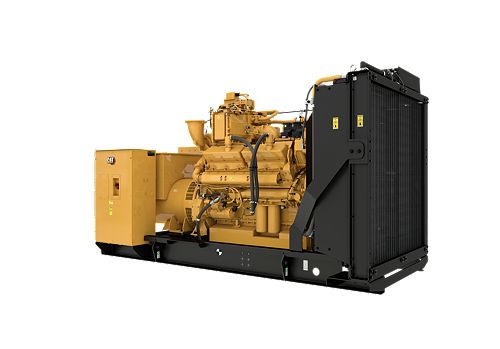

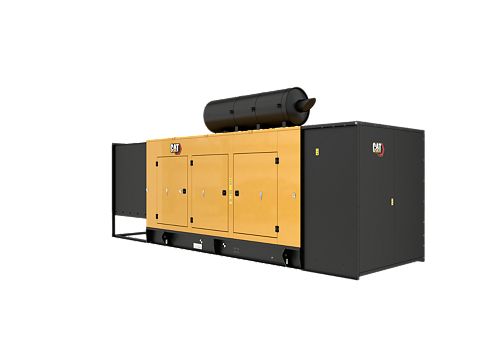

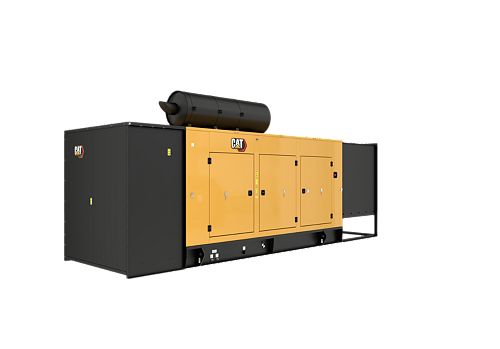

G3412 with FAST RESPONSE

Generator Set Specifications
Maximum Standby Rating	500 ekW @0.8pf
Fuel Type	Natural Gas
Emissions/Fuel Strategy	U.S. EPA Certified for Emergency Only Stationary Genset
Frequency	60 Hz
RPM	1800 rpm

Air Inlet
- Two-element single-stage air cleaner with enclosure and service indicator
- Dual air cleaners, 1 per side, with service indicator
Control Panel
- EMCP 4.3
Cooling
- Package mounted radiator
- LH or RG connections when radiator is not selected
- Engine driven pumps for jacket water and separate circuit aftercooler
- Jacket water and SCAC thermostats
Fuel
- Pipeline Natural Gas: 800-1000 BTU/scf and 70-100 Methane Number
- Gas Train: NFPA37 and CSA B149.3
Exhaust
- Dry exhaust manifolds, insulated and shielded
Fuel System
- Engine-installed electronic control valve
- Gas pressure regulator
- 24V DC energized-to-run (ETR) gas shutoff valve
General
- Paint- Caterpillar Yellow with gloss black rails and radiators
- Operation and maintenance manuals
- RH Service
- Parts book
- Crankshaft vibration damper and guard
Lubrication
- Cartridge style oil filter
- Gear type lube oil pump
Generator
- Caterpillar's Digital Voltage Regulator (CDVR) including reactive droop capability, 3-phase voltage sensing, KVAR/PF modes, RFI suppression, and a min/max exciter
- Anti-condensation space heater
- Permanent Magnet Excitiation
- Winding temperature detectors
Governing System
- ADEM A4
Ignition System
- Electronic Ignition System (controlled by ADEM A4)
- Individual Cylinder Detonation Sensitive Timing (DST)
Starting/Charging
- Electric Starter
- 24V DC starting motors

Air Inlet
- Air cleaner with precleaner
Circuit Breakers
- S LSI
- Frame mounting
- Right, left, rear mounted
Control Panel
- Local alarm module
- Local PC monitoring
- Remote PC monitoring
- Remote annunciator
Cooling
- Inlet/Outlet connections
- Coolant level drain line with valves, fan with guard
Exhaust
- Flexible fittings
- 15, 25 dBA Attenuation
General
- Digital diagnostic tool
- Tool set
- US AID emblem
Generator
- Cable access box
- Bearing temperature detectors
Starting/Charging
- Battery with cables and rack (shipped loose)
- 10A, 24VDC battery charger
- Jacket water heater
