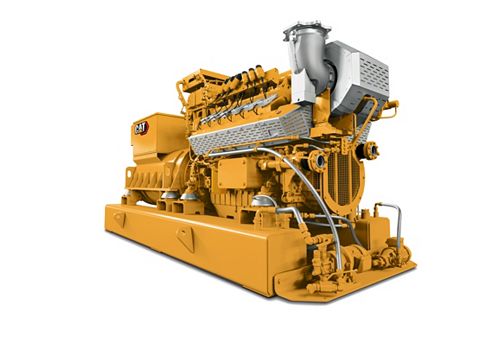

CG132B-12

Displacement
1604.9 in³ / 26.3 l
Bore
5.2 in / 132 mm
Stroke
6.3 in / 160 mm

The Cat CG132B family of gas engines are perfectly tailored to the challenges of the power plant in an age of global value chains.

Generator Set Specifications
Maximum Continuous Rating 600 kW @1.0pf
Fuel Type Natural Gas, Biogas
Maximum Electrical Efficiency 43.3% / 42.4%
Maximum Standby Rating 600 kW
Frequency 50 / 60 Hz
RPM 1500 / 1800 rpm
Engine Specifications
Engine Model CG132
Displacement 1604.9 in³ / 26.3 l
Aspiration TA
Bore 5.2 in / 132 mm
Stroke 6.3 in / 160 mm
Generator Set Dimensions
Length 151 in / 3830 mm
Width 70 in / 1780 mm
Height 85 in / 2150 mm
Dry Weight - Genset 15432 lb / 7000 kg

Standard Equipment

  • Air Inlet
    • One-element single-stage air cleaner with enclosure and sevice indicator
    • Turbocharger with a water-cooled bearing case for all cylinder
  • Control Panels
    • TPEM (Total Plant & Energy Management System)
  • Cooling
    • ANSI/DN customer flange connections for JW inlet and outlet
    • flange connections for JW inlet and outlet
    • Jacket water and SCAC thermostats
    • Electrical jacket water and aftercooler coolant pump
  • Exhaust
    • Exhaust waste gate for the CG132B-16
    • Closed crankcase ventilation system
    • PEARL/Low resistence exhaust system
  • Fuel system
    • Independently controlled cylinder monitoring and ignition system
    • Electronic fuel metering valve
    • Pre-chamber spark plugs
  • Generator
    • Reactive droop
    • grid code generator
    • closed-coupled generator result in no torque transmission to the base frame
    • Busbar connections
    • Winding temperature detectors
    • Anti-condensation space heater
    • 3-phase sensing and KVAR/PF control
  • Starting/Charging
    • 24V starting motors
    • Battery disconnect switch
  • General
    • Crankshaft vibration damper and guard

Optional Equipment

  • Air Inlet
    • Mounting stand
    • Air cleaner with precleaner
  • Cooling
    • CHP skid
