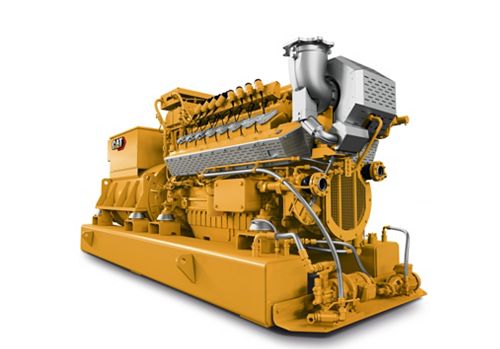

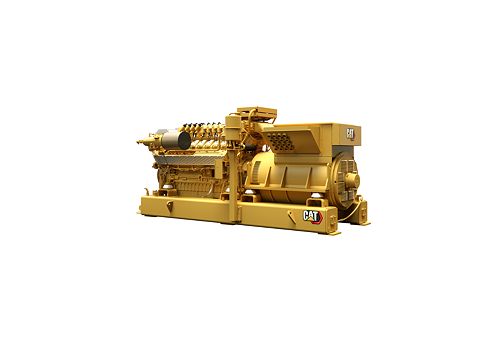

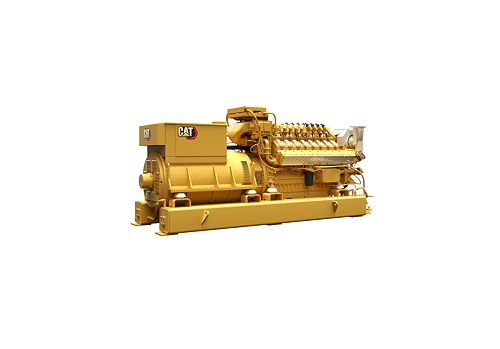

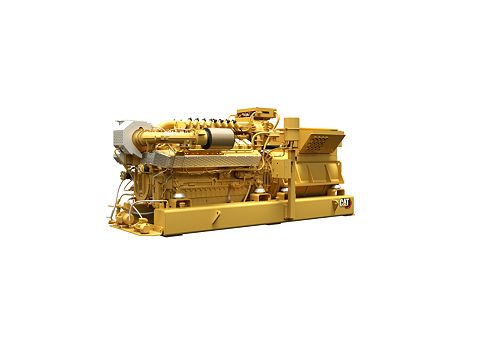

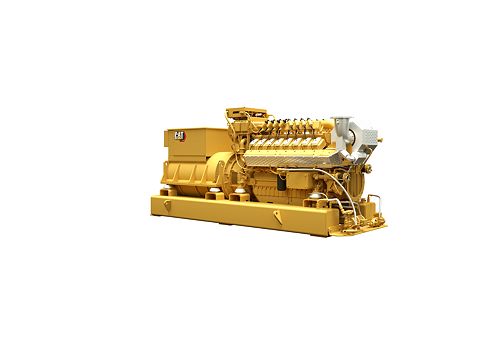

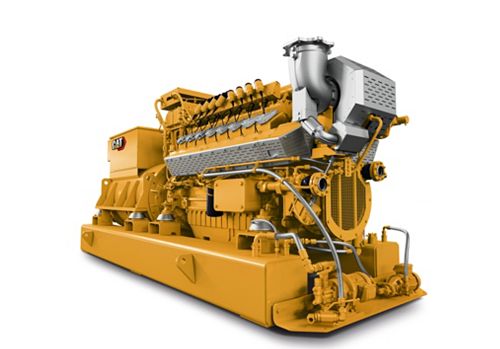

CG132B-16

Displacement
2135.8 in³ / 35 l
Bore
5.2 in / 132 mm
Stroke
6.3 in / 160 mm

The Cat CG132B family of gas engines are perfectly tailored to the challenges of the power plant in an age of global value chains.

Generator Set Specifications
Maximum Continuous Rating 800 kW @1.0pf
Fuel Type Natural Gas, Biogas
Maximum Electrical Efficiency 43.5% / 42.6%
Maximum Standby Rating 800 kW
Frequency 50 / 60 Hz
RPM 1500 / 1800 rpm
Engine Specifications
Engine Model CG132
Displacement 2135.8 in³ / 35 l
Aspiration TA
Bore 5.2 in / 132 mm
Stroke 6.3 in / 160 mm
Generator Set Dimensions
Length 165 in / 4200 mm
Width 70 in / 1780 mm
Height 85 in / 2150 mm
Dry Weight - Genset 17691 lb / 8070 kg

Standard Equipment

  • Air Inlet
    • Turbocharger with a water-cooled bearing case for all cylinder
    • One-element single-stage air cleaner with enclosure and sevice indicator
  • Control Panels
    • TPEM (Total Plant & Energy Management System)
  • Cooling
    • Flange connections for JW inlet and outlet
    • Jacket water and SCAC thermostats
    • Electrical jacket water and aftercooler coolant pump
    • flange connections for JW inlet and outlet
    • ANSI/DN customer flange connections for JW inlet and outlet
    • Cat flanges on SCAC circuit
  • Exhaust
    • Exhaust waste gate for the CG132B-16
    • Closed crankcase ventilation system
    • PEARL/Low resistence exhaust system
  • Fuel system
    • Electronic fuel metering valve
    • Independently controlled cylinder monitoring and ignition system
    • Pre-chamber spark plugs
  • Generator
    • grid code generator
    • Reactive droop
    • closed-coupled generator result in no torque transmission to the base frame
    • Busbar connections
    • Anti-condensation space heater
    • 3-phase sensing and KVAR/PF control
    • Winding temperature detectors
  • Starting/Charging
    • 24V starting motors
    • Battery disconnect switch
  • General
    • Crankshaft vibration damper and guard

Optional Equipment

  • Air Inlet
    • Air cleaner with precleaner
    • Mounting stand
  • Cooling
    • CHP skid
