CG132B-8

Displacement
1067.9 in³ / 17.5 l
Bore
5.2 in / 132 mm
Length
122 in / 3100 mm

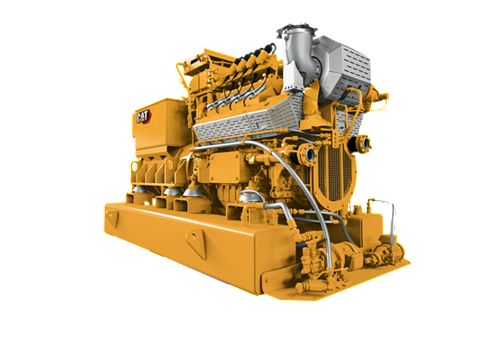

The Cat CG132B family of gas engines are perfectly tailored to the challenges of the power plant in an age of global value chains.

Generator Set Specifications
Maximum Continuous Rating 400 ekW @1.0pf
Fuel Type Natural Gas, Biogas, Coal Gas
Maximum Electrical Efficiency 43.1% / 42.1%
Frequency 50 / 60 Hz
RPM 1500 or 1800 rpm
Engine Specifications
Engine Model CG132-8
Displacement 1067.9 in³ / 17.5 l
Aspiration TA
Bore 5.2 in / 132 mm
Stroke 6.3 in / 160 mm
Generator Set Dimensions
Length 122 in / 3100 mm
Width 70 in / 1780 mm
Height 85 in / 2150 mm
Dry Weight - Genset 12610 lb / 5720 kg

Standard Equipment

  • Air Inlet
    • One-element single-stage air cleaner with enclosure and sevice indicator
    • Turbocharger with a water-cooled bearing case for all cylinder
  • Control Panels
    • TPEM (Total Plant & Energy Management System)
  • Cooling
    • flange connections for JW inlet and outlet
    • Electrical jacket water and aftercooler coolant pump
    • Jacket water and SCAC thermostats
    • ANSI/DN customer flange connections for JW inlet and outlet
  • Exhaust
    • Exhaust waste gate for the CG132B-16
    • Closed crankcase ventilation system
    • PEARL/Low resistence exhaust system
  • Fuel system
    • Independently controlled cylinder monitoring and ignition system
    • Electronic fuel metering valve
    • Pre-chamber spark plugs
  • Generator
    • Anti-condensation space heater
    • Reactive droop
    • closed-coupled generator result in no torque transmission to the base frame
    • Winding temperature detectors
    • Busbar connections
    • 3-phase sensing and KVAR/PF control
    • grid code generator
  • Starting/Charging
    • 24V starting motors
    • Battery disconnect switch
  • General
    • Crankshaft vibration damper and guard

Optional Equipment

  • Cooling
    • CHP skid
