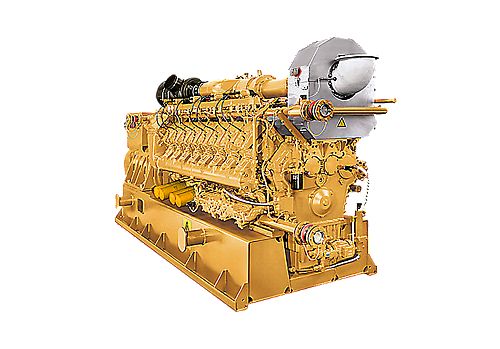

CG170-16 K

Displacement
4320 in³ / 70.8 l
Bore
6.7 in / 170 mm
Stroke
7.7 in / 195 mm

From natural gas-fueled combined heat and power (CHP) systems and emergency power for facilities, to renewable biogas energy to support the local grid, or electricity generated from coal mine gases, Caterpillar has a wide range of reliable gas power solutions.

Loan Calculator Credit Application
Build & Quote
alt 1
Gas Solutions Brochure CG170K Model Series Brochure Electric Power Rating Guide CG170 Series Brochure Gas Generator Set 50 and 60 Hz Ratings Guide
Generator Set Specifications
Continuous Rating 1500 ekW
Fuel Type Natural Gas
Maximum Electrical Efficiency 40.90%
Frequency 50 or 60 Hz
RPM 1500 or 1800 rpm
Engine Specifications
Engine Model CG170K-16
Displacement 4320 in³ / 70.8 l
Aspiration TA
Bore 6.7 in / 170 mm
Stroke 7.7 in / 195 mm
Generator Set Dimensions
Length 261 in / 6640 mm
Width 71 in / 1810 mm
Height 87 in / 2210 mm
Dry Weight - Genset 32848 lb / 14900 kg

Standard Equipment

  • Air Inlet
    • Two-element single-stage air cleaner with enclosure and service indicator
    • Turbocharger for the CG170K comes with a water-cooled bearing case
  • Control Panels
    • TEM(Total Electronic Management)
  • Exhaust
    • Closed crankcase ventilation system
    • Low resistence exhaust system
  • Cooling
    • Engine driven water pumps for jacket water and after cooler
    • Jacket water and SCAC thermostats
    • Flange connections for JW inlet and outlet
  • Fuel system
    • Electronic fuel metering valve
    • Pre-chamber spark plugs
    • Independently controlled cylinder monitoring and ignition system
  • Generator
    • Reactive droop
    • Winding temperature detectors
    • 3-phase sensing and KVAR/PF control
    • Anti-condensation space heater
    • Busbar connections
  • Starting/Charging
    • Battery disconnect switch
    • 24V starting motors
  • General
    • Crankshaft vibration damper and guard

Optional Equipment

  • Air Inlet
    • Mounting stand
    • Air cleaner with precleaner
  • Cooling
    • CHP skid
