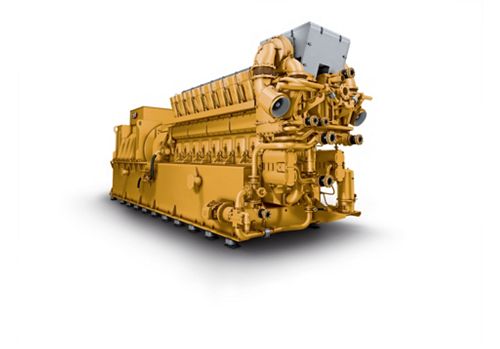

CG260-16

Displacement
16586 in³ / 271.8 l
Bore
10.2 in / 260 mm
Stroke
12.6 in / 320 mm

From natural gas-fueled combined heat and power (CHP) systems and emergency power for facilities, to renewable biogas energy to support the local grid, or electricity generated from coal mine gases, Caterpillar has a wide range of reliable gas power solutions.

Generator Set Specifications
Maximum Continuous Rating 4300 / 4000 ekW @1.0pf
Fuel Type Natural Gas, Biogas, Coal Gas, Associated Gas, Synthesis Gas
Maximum Electrical Efficiency 44.1 / 43.8%
Maximum Standby Rating 4500 ekW
Frequency 50 / 60 Hz
RPM 1000 / 900 rpm
Engine Specifications
Engine Model CG260-16
Displacement 16586 in³ / 271.8 l
Aspiration TA
Bore 10.2 in / 260 mm
Stroke 12.6 in / 320 mm
Generator Set Dimensions
Length 371 in / 9420 mm
Width 110 in / 2794 mm
Height 133 in / 3390 mm
Dry Weight - Genset 117505 lb / 53299.4 kg

Standard Equipment

  • Air Inlet
    • One-element single-stage air cleaner with enclosure and sevice indicator
    • Turbocharger with a water-cooled bearing case for all cylinder
  • Control Panels
    • TEM (Total Electronic Management)
  • Cooling
    • flange connections for JW inlet and outlet
    • Jacket water and SCAC thermostats
    • Electrical jacket water and aftercooler coolant pump
  • Exhaust
    • Exhaust waste gate for the CG260-16
    • Closed crankcase ventilation system
  • Fuel system
    • Electronic fuel metering valve
    • Independently controlled cylinder monitoring and ignition system
    • Pre-chamber spark plugs
  • Generator
    • Busbar connections
    • Closed-coupled generator result in no torque transmission to the base frame
    • Reactive droop
    • 3-phase sensing and KVAR/PF control
    • Grid code generator
    • Anti-condensation space heater
    • Winding temperature detectors
  • Starting/Charging
    • Compressed air engine start
  • General
    • Crankshaft vibration damper and guard

Optional Equipment

  • Cooling
    • CHP skid
