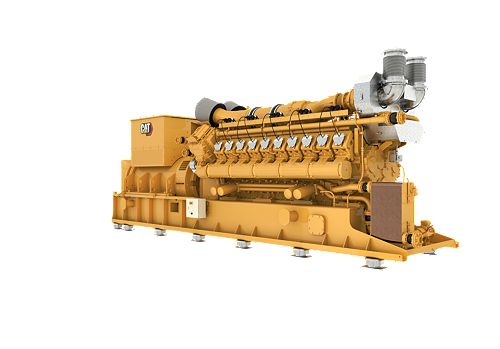

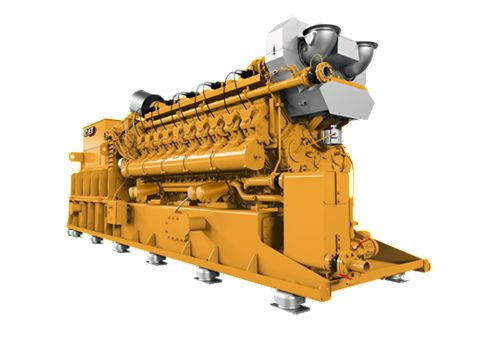

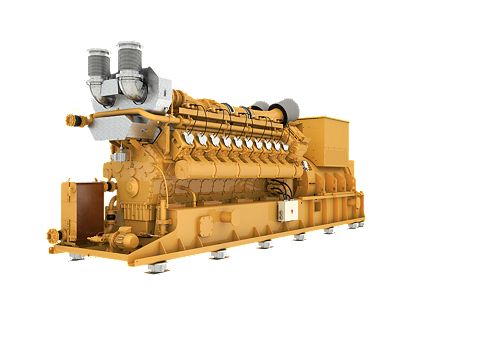

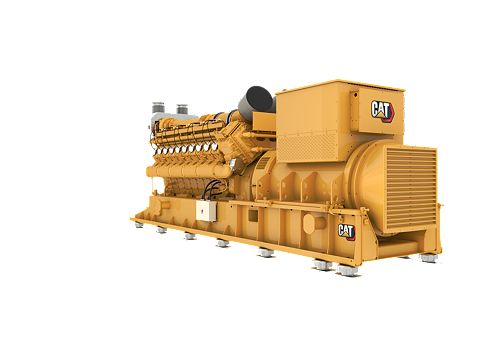

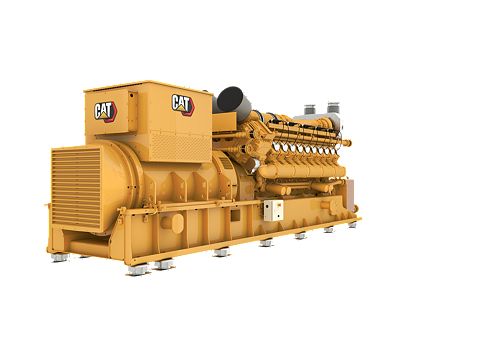

CG170B-20

Bore
6.7 in / 170 mm
Stroke
7.7 in / 195 mm
Length
258 in / 6556 mm

State-of-the-art components providing more power: the compact design, a focus on a wide range of applications and highest efficiency values of its class make sure of that. Managed by a smart and secure control system, the new CG170B series offers the optimal balance between profitability and reliability.

Generator Set Specifications
Maximum Continuous Rating 2300 ekW @1.0pf
Fuel Type Natural Gas, Biogas, Coal Gas
Maximum Electrical Efficiency 45.00%
Maximum Standby Rating 2300
Frequency 50 Hz
RPM 1500 rpm
Engine Specifications
Engine Model CG170B-20
Aspiration TA
Bore 6.7 in / 170 mm
Stroke 7.7 in / 195 mm
Generator Set Dimensions
Length 258 in / 6556 mm
Width 67 in / 1706 mm
Height 89 in / 2263 mm
Dry Weight - Genset 47377 lb / 21490 kg

Standard Equipment

  • Air Inlet
    • One-element single-stage air cleaner with enclosure and sevice indicator
    • Turbocharger with a water-cooled bearing case for all cylinder
  • Control Panels
    • TPEM (Total Plant & Energy Management System)
  • Cooling
    • Jacket water and SCAC thermostats
    • flange connections for JW inlet and outlet
    • ANSI/DN customer flange connections for JW inlet and outlet
    • Electrical jacket water and aftercooler coolant pump
  • Exhaust
    • PEARL/Low resistence exhaust system
    • Exhaust waste gate for the CG170B-20
    • Closed crankcase ventilation system
  • Fuel system
    • Pre-chamber spark plugs
    • Electronic fuel metering valve
    • Independently controlled cylinder monitoring and ignition system
  • Generator
    • Busbar connections
    • Winding temperature detectors
    • grid code generator
    • Reactive droop
    • 3-phase sensing and KVAR/PF control
    • Anti-condensation space heater
    • closed-coupled generator result in no torque transmission to the base frame
  • Starting/Charging
    • 24V starting motors
    • Battery disconnect switch
  • General
    • Crankshaft vibration damper and guard

Optional Equipment

  • Cooling
    • CHP skid
