XQP30

Width
44.1 in / 1120 mm
Height
62.3 in / 1583 mm
Length
84.6 in / 2150 mm

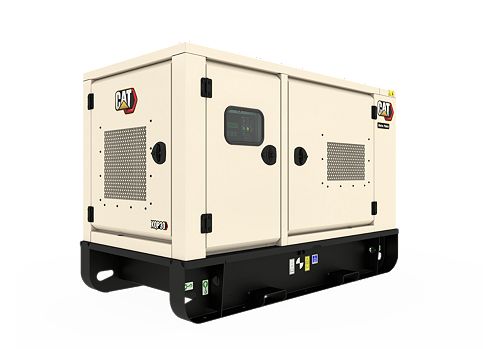

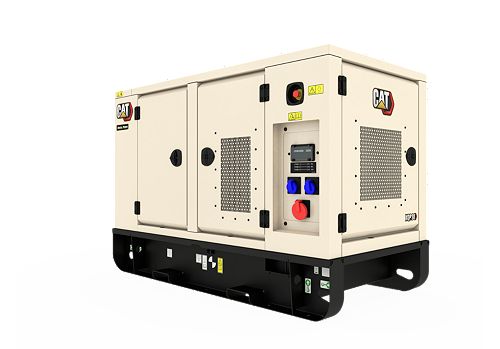

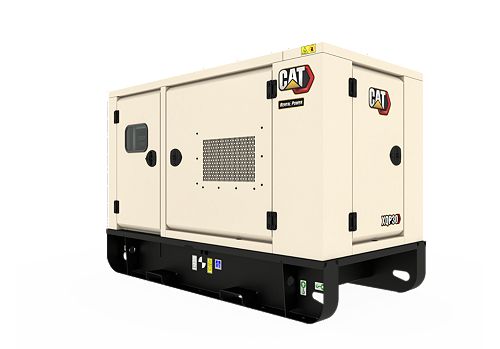

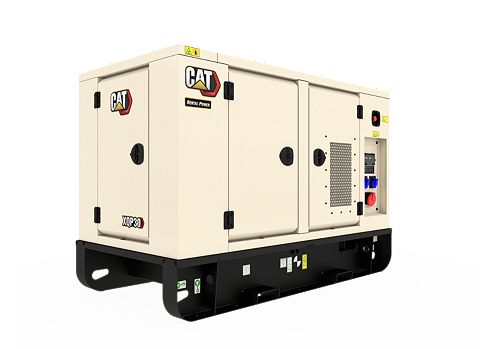

This XQP30 generator set is Fuel consumption optimized for customers in non-regulated territories. With a robust, rental or mobile-ready construction, the product line is designed to be easily transported around project sites safely and efficiently. Heavy-duty bases with integrated fork lift pockets allow the unit to be dragged and lifted with ease, while Clipsal or CEE socket options are available on select models to reduce installation time and provide trouble-free power distribution.

Loan Calculator Credit Application
Build & Quote
alt 1
XQP30 Rental Generator Set Best Specific Fuel Consumption Your Partner for Rental and Construction Cat Gensets Rating Guide
Generator Set
Rating Prime 30 kVa
Frequency 50/60 Hz
Voltage 127 - 480 V
Engine
Engine Cat C3.3
Emissions Low Fuel Consumption
Fuel Diesel
Dimensions
Width 44.1 in / 1120 mm
Height 62.3 in / 1583 mm
Length 84.6 in / 2150 mm
Weight - With Lube Oil and Coolant 2712 lb / 1230 kg
Fuel consumption Best Fuel Efficiency
100% Load 50Hz 1.9 gal/hr / 7.2 l/hr
100% Load 60Hz 2.3 gal/hr / 8.6 l/hr
75% Load 50Hz 1.5 gal/hr / 5.6 l/hr
75% Load 60Hz 1.7 gal/hr / 6.6 l/hr
50% Load 50Hz 1.1 gal/hr / 4.1 l/hr
50% Load 60Hz 1.3 gal/hr / 4.9 l/hr
Noise rating (with enclosure) Best Fuel Efficiency
Sound Power @ 1 meters (3 feet) @ 75% of rating (50Hz) 72 dB(A)
Sound Power @ 1 meters (3 feet) @ 75% of rating (60Hz) 73 dB(A)

Standard Equipment

  • CAT C3.3 Diesel Engine
    • Naturally aspirated
  • Generator
    • LC1514F Frame
  • Air Filter
    • Cyclonic/paper with dust cup and service indicator
  • Cat Connect remote monitoring
    • Provides package monitoring and management
  • Cooling System
    • Package mounted radiator with vertical air discharge. Filled from factory
  • Charging / Starting System
    • 12V heavy duty starting motor and charging alternator c/w battery isolator
  • Fuel System
    • 24 hour dual wall fuel tank with 3 way directional valve for external supply
  • Control Panel
    • Digital EMCP4.2B set mounted controller
  • Distribution
    • Single, robust enclosure for controls and distribution c/w 4 pole circuit breaker and safety cut off
  • Structure
    • Heavy Duty steel base frame with integral fuel tank. Fork lift pockets. Dragging bars. Lifting frame and 4 point lift. base frame is wider than enclosure to protect generator set during transportation.
  • Enclosure
    • Sound attenuating, galvanised steel enclosure with exceptional noise reduction performance
  • Exhaust
    • Integrated spark arresting silencer
  • Lube Oil
    • On engine primary and secondary oil filters. Filled from factory
  • General
    • Factory tested and inspected
