C2.2
- Maximum Power
- 74 hp / 55 kW
- Maximum Torque
- 199 lb-ft @ 1600 rpm / 270 Nm @ 1600 rpm
- Minimum Power
- 60 hp / 45 kW

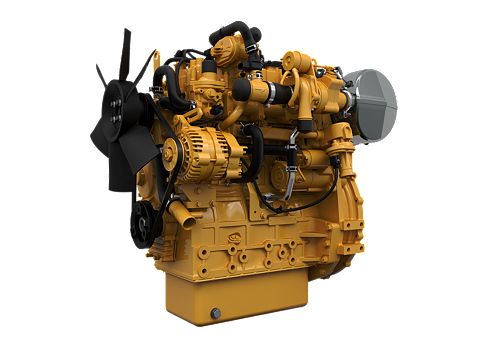

The new electronic Cat?? C2.2 Industrial Diesel Engines, with common rail fuel system, deliver impressive performance throughout a wide speed range with exceptional power density. Ultracompact package size and extensive options make them ideal for agriculture, aerial lifts, compressors, construction, general industrial, irrigation equipment, material handling, mobile earthmoving equipment, mobile light towers, turf and landscaping, underground mining equipment, and welders.
| Power Rating | |
|---|---|
| Maximum Power | 74 hp / 55 kW |
| Maximum Torque | 199 lb-ft @ 1600 rpm / 270 Nm @ 1600 rpm |
| Rated Speed | 2800 rpm |
| Minimum Power | 60 hp / 45 kW |
| Emission Standards | |
|---|---|
| Emissions | U.S. EPA & CARB Tier 4 Final, EU Stage V |
| General | |
|---|---|
| Engine Configuration | In-Line 4, 4-Stroke-Cycle Diesel |
| Bore | 3.3 in / 84 mm |
| Stroke | 3.9 in / 100 mm |
| Displacement | 135 in³ / 2.2 l |
| Compression Ratio | 17.0:1 |
| Aspiration | Turbocharged (T) or Turbocharged-Aftercooled (TA) |
| Combustion System | Direct Injection |
| Rotation from Flywheel End | Counterclockwise |
| Aftertreatment | DOC+DPF |
| Engine Dimensions - Approximate | |
|---|---|
| Length | 31.7 in / 807 mm |
| Width | 20.8 in / 529 mm |
| Height | 30.2 in / 766 mm |
| Weight - Net Dry - Basic Operating Engine Without Optional Attachments | 509 lb / 231 kg |
| Aftertreatment Dimensions | |
|---|---|
| Length | 16.1 in / 408 mm |
| Weight | 12.8 lb / 5.8 kg |
| Aftertreatment Dimensions* | |
|---|---|
| Diameter | 6.1 in / 155 mm |
