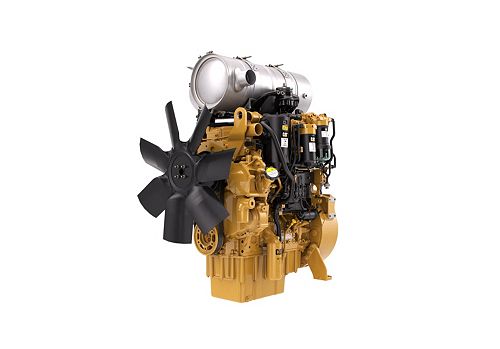

C4.4

Emission Standards
Emissions	U.S. EPA & CARB Tier 4 Final, EU Stage V

General
Engine Configuration	Inline 4, 4-Stroke-Cycle Diesel
Bore	4.1 in / 105 mm
Stroke	5 in / 127 mm
Displacement	268.5 in³ / 4.4 l
Compression Ratio	16.5:1
Aspiration	Turbocharged Aftercooled (TA) or Series Turbocharged Aftercooled (TTA)
Combustion System	Direct Injection
Rotation from Flywheel End	Counterclockwise
Aftertreatment	DOC+DPF+SCR

Engine Dimensions - Approximate
Length	32.4 in / 822 mm
Width	29.6 in / 748 mm
Height	35.3 in / 897 mm
Weight - Net Dry - Basic Operating Engine Without Optional Attachments	1180 lb / 535 kg

Air Inlet System
- Standard air cleaners
Control System
- Full electronic control system, all connectors and wiring looms waterproof and designed to withstand harsh off-highway environments
- Flexible and configurable software features and well-supported SAE J1939 CAN bus enables highly integrated machines
Cooling System
- Top tank temperature 108° C (226° F) as standard to minimize cooling pack size
- 50:50 water glycol mix
Flywheels and Flywheel Housing
- Fitted with SAE3 configuration as standard
Fuel System
- Electronic high pressure common rail
- Innovative filter design to ensure maximum protection of the engine
Lube System
- Wide choice of sumps for different applications
Power Take Off
- SAE A and SAE B flanges on left-hand side. Additional SAE A flange available on left-hand side. Engine power can also be taken from the front of the engine on some applications. Factory fitted compressors are also available.
General
- Available with or without a balancer
- Paint: Caterpillar yellow, with optional colors available at request
U.S. EPA Tier 4 Final, EU Stage V Aftertreatment/ Clean Emissions Control Equipment
- Clean Emissions Module (CEM), consisting of Diesel Particulate Filter (DPF) and Diesel Oxidation Catalyst (DOC)
- Selective Catalytic Reduction (SCR)
- 3" flex pipe connection with straight, 45°, and 90° options for flexibility
