DG300 (3-Phase)
- Displacement
- 1106.3 in³ / 18.1 l
- Bore
- 5.7 in / 145 mm
- Stroke
- 7.2 in / 183 mm

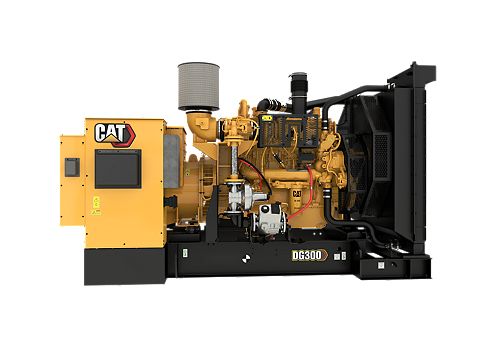

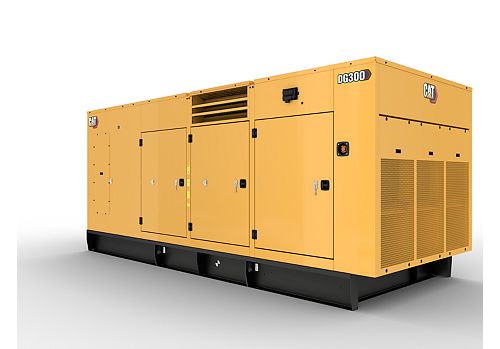

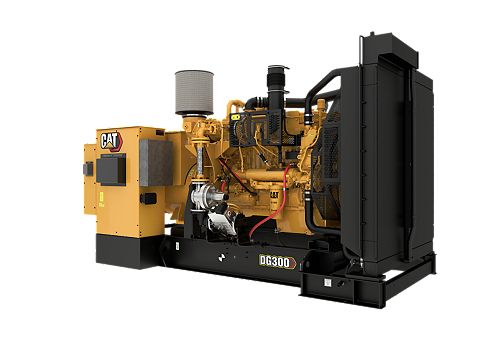

The Cat® DG300 gas generator set delivers 300 ekW of natural gas power for demand response and other non-emergency applications. Lean-burn technology and low fuel inlet pressure capability combine efficient operation with versatile installation capabilities.
| Generator Set Specifications | |
|---|---|
| Frequency | 60 Hz |
| Emissions/Fuel Strategy | U.S. EPA Non-Emergency Certified |
| RPM | 1800 |
| Voltage | 208 - 600 VAC |
| Natural Gas Rating | 300 ekW |
| Duty Cycle | Demand Response |
| Engine Specifications | |
|---|---|
| Engine Model | Cat® CG18 In-line 6, 4-cycle Natural Gas |
| Fuel System | Gas mixer, Venturi |
| Aspiration | Turbocharged - Air-to-Air Aftercooled |
| Governor Type | Electronic |
| Displacement | 1106.3 in³ / 18.1 l |
| Compression Ratio | 10.5:1 |
| Bore | 5.7 in / 145 mm |
| Stroke | 7.2 in / 183 mm |
| Generator Set Dimensions | |
|---|---|
| Length | 154 in / 3581 mm |
| Width | 73 in / 1854 mm |
| Height | 82 in / 2083 mm |
| Weight | 10721 lb / 4863 kg |
| Performance Specification | |
|---|---|
| Duty | Demand Response |
